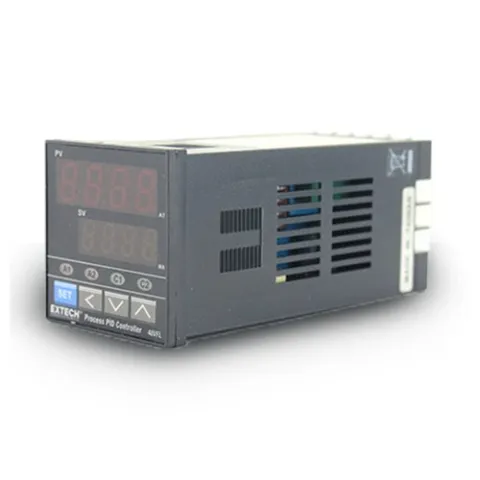

Extech 48VFL13 1/16 DIN Temperature PID Controller with 4-20mA Output

The Extech 48VFL13 Temperature PID controller offers Fuzzy Logic enhanced PID and a Soft-Start feature that protects heaters from cold-starts. PID plus Fuzzy Logic tackles even the most demanding applications, eliminating over-shoot, unwanted process fluctuations, and drift. The Soft Start feature is ideally suited for processes, such as those employed in the Thermo-Plastics industry, where careful, exact, and slow heating of product is required. This unit accepts thermocouple and RTD inputs, and offers single stage Ramp and Soak program with Ramp-to-Set point Limit that can be combined with the Soft Start feature for critical process demands. The 48VFL13 comes complete with mounting bracket hardware and screw terminals for easy wiring.

Features:

• Dual 4-digit LED displays for process and setpoint values
• Easy programming & navigation with user-friendly menus and tactile keypad
• Fuzzy Logic PID offers intuitive control simulating human control logic
• Manual mode allows the user to override automatic control and drive the controller output higher or lower with the touch of a button
• One-touch Auto Tuning for quick setup and stable, precise control
• Two ‘Latching' Alarm relays standard with 8 Alarm modes plus advanced Timer modes
• Single stage Ramp and Soak program with Ramp-to-Setpoint
• Limit that can be combined with the Soft Start feature for critical process demands
• Accepts thermocouple and RTD inputs
• Select desired temperature display units (°F or °C) from setup menu
• Select thermocouple input type (9 selections) or RTD input (2 selections) from the display menu without the need for hardware modification

For more information, please see Data Sheet
