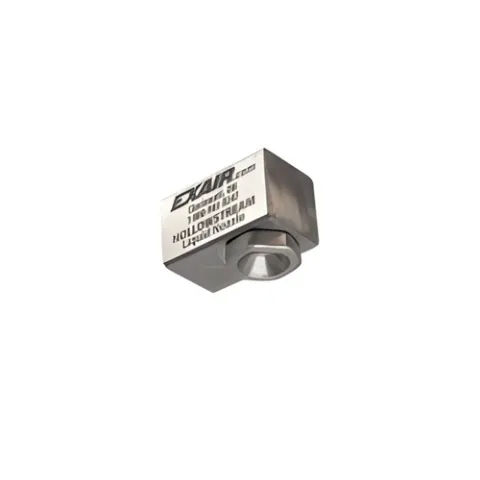

Exair PHL80X5SS HollowStream Cone Liquid Atomizing Nozzle, 1/8 NPT 303 Stainless Steel, Hollow Cone Spray Pattern

EXAIR's 1/8 NPT HollowStream™ Cone Nozzles, with a circular ring spray pattern, are among the most common type of spray nozzles. Hollow cone spray nozzles are applied to solve cooling, cleaning, washing, rinsing and dust suppression applications throughout industry with less liquid than their full cone counterparts.

• Their design is vaneless, which creates wide open internal features to resist clogging and can work well with liquids containing particulate.
• They produce a uniform distribution in a hollow cone ring pattern.
• Their right-angle design is compact and operates up to 250 PSI liquid pressure.
• They are commonly used with liquids like water, rinse aids or detergents but are also effective with chemicals, pesticides and herbicides.
• Adjustment of the liquid flow rate is done by varying liquid pressure.

Applications

• Cooling, coating
• Quenching
• Dust suppression
• Washing, rinsing
• Foam breaking
• Slurry spraying
• Sanitizing, degreasing
• Lubricating

Advantages

• Lower liquid flow rates compared to full cone counterparts
• Increase surface area coverage
• Increase liquid volume on your target
• All stainless steel construction
• Compact footprint, versatile
