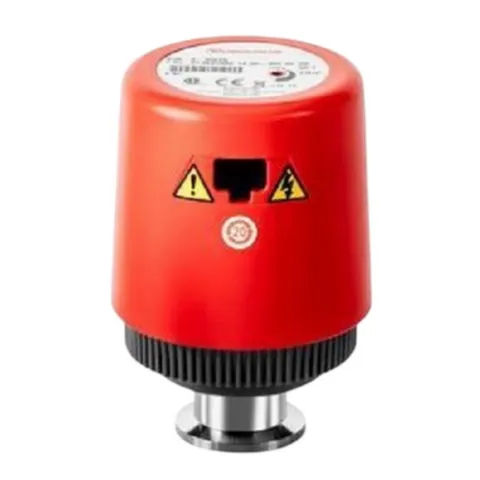

Edwards Vacuum D14662000 AIM X Magnetron Gauge with DN 40 CF Flange

Edwards Active Inverted Magnetron (AIM) Gauges provide accurate measurement over the vacuum range of 1 x 10^-2 to 1 x 10^-9 mbar. These gauges have proved to be rugged and reliable in a wide range of applications, ranging from scientific instruments to industrial processes. The AIM-X Gauge is an inverted magnetron gauge head and gauge controller combined into a single compact unit, and features a linear output for easy integration with a computer or PLC.

Features:

• Drive electronics combined in the gauge head
  • Reduce the system cost
  • Save valuable rack space
• Wide-range, regulated, internal power supply
  • Runs from standard d.c. power supplies +13.5 to +36 V
  • Tolerant to voltage fluctuations
• Standard analog output 0 to +10 V d.c. and gauge identifier
  • Easy to interface with a computer or PLC
  • Fault output indication
• Low output impedance and integral Faraday shield
  • Provide high level of noise immunity
  • Permit long cable runs (up to 100 m)
• Interchangeable body tube
  • Rapid tube replacement without pre-calibration
• Bakeable Tube
  • The DN40CF tube is bakeable to 300 °C (with the electronics removed)
• Unique striker design
• Ensures rapid striking even at high vacuum or in contaminating conditions
• CSA, C/US Approved
  • Meets safety requirements for electrical equipment for measurement
