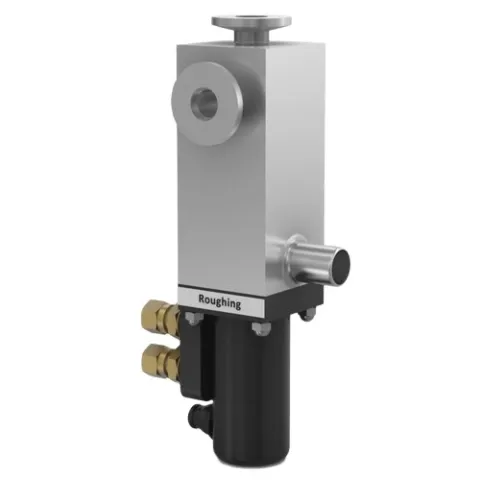

Edwards backing/roughing valves with ISO NW roughing and fore pump terminations feature pneumatic actuation. They combine the function of separate backing/roughing valves in one integral 3 port unit.
A flexible neoprene connector is supplied for the backing connection. The roughing and fore pump ports terminate in the appropriate NW flange.
For more information, please see Instructions
For more information, please see Data Sheet
