Edwards Vacuum A34501131 Clean & Overhaul Kit for EM80 HC/F Series

Choose genuine Edwards service kits for your vacuum pump's maintenance. Only genuine spare parts guarantee convenient maintenance, perfect fit, and reliable performance of your equipment after service. From light maintenance to comprehensive overhauls, these kits are the efficient, cost-effective solution for your pump repair needs.

Features:

• Tested and qualified to ensure long life and prevent secondary damages and downtime
• Always suitable for the application the pump is qualified for.
• Guaranteeing safe, reliable and long-term operation of pumps when properly fitted.

Compatible with following products:

• Service Interior Assy E2M80, A36501100
• E2M80 - 2 Stage Rotary Vane Pump, 3Ph 380-400V 50Hz / 230/460V 60Hz, A36504940
• E2M80 AZ - 2 Stage Rotary Vane Pump, 3Ph 380-400V 50Hz / 230/460V 60Hz, A36507940
• E2M80 - 2 Stage Rotary Vane Pump, 3Ph 200V 50/60Hz / 380V 60Hz, A36504934
• E2M80 - 2 Stage Rotary Vane Pump, A36501000
• E2M80 AZ - 2 Stage Rotary Vane Pump, 3Ph 200V 50/60Hz / 380V 60Hz, A36507934
• E2M80 FX - 2 Stage Rotary Vane Pump, 3Ph 200V 50/60Hz / 380V 60Hz, A36517934
• E2M80 FX - 2 Stage Rotary Vane Pump, 3Ph 380-400V 50Hz / 230/460V 60Hz, A36517940
• E2M80 - 2 Stage Rotary Vane Pump, 3Ph 575V 60Hz, NRY7TV000
• E2M80 FX - 2 Stage Rotary Vane Pump, A36511000

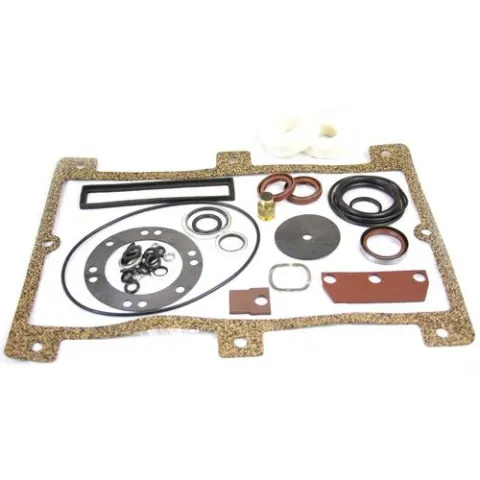

Kit includes:

• 1x O-Ring NIT 159.51D x 3.0SEC
• 1x O-Ring NIT 64.51D x 3.0SEC
• 1x O-Ring NIT 9.6ID x 2.4SEC
• 2x Seal FKM GP 25.35.6 UNILH
• 1x Dowty Seal 3/4" BSF MkCC
• 1x Dowty Bonded Seal MK H 1" BSP
• 1x Dowty Bonded Seal MK B 1/4"BSP
• 2x Dowty Bonded Seal MK A 1/8"BSP
• 1x O-Ring NIT 61.61D x 2.4SEC
• 1x O-Ring FKM GP 0.734ID X .139SEC
• 1x O-Ring FKM GP 12.42IDX1.78SEC
• 1x O-Ring NIT 0.424ID x .103SEC
• 2x O-Ring NIT 1.850ID x .210SEC
• 5x O-Ring NIT 0.299ID x .103SEC
• 1x Blade Spring
• 2x O-Ring NIT 0.174ID X .103SEC
• 1x Sight Glass Seal EDM65
• 1x Oil Filter Seal
• 1x Ballast Piston Assy 40/80/175/
• 1x Label - Exhaust Warning
• 1x LV Exhaust Rubber
• 1x Ballast Valve
• 6x Outlet Valve Cover Spacer
• 1x O-Ring NIT 5.6ID x 2.4SEC
• 1x Rubber Seal
• 1x Waved Washer
• 1x HV EXH Valve Rubber
• 1x LV Exhaust Valve Rubber
• 1x Oil Box Gasket
• 2x Filter
• 1x Seal FKM GP 30.40.7 PLN
