Edwards Vacuum A34401131 Clean & Overhaul Kit for EM40 HC/F Series

Choose genuine Edwards service kits for your vacuum pump's maintenance. Only genuine spare parts guarantee convenient maintenance, perfect fit, and reliable performance of your equipment after service. From light maintenance to comprehensive overhauls, these kits are the efficient, cost-effective solution for your pump repair needs.

Features:

• Tested and qualified to ensure long life and prevent secondary damages and downtime
• Always suitable for the application the pump is qualified for.
• Guaranteeing safe, reliable and long-term operation of pumps when properly fitted.

Compatible with following products:

• E2M40 Standard pump for use with Ultragrade oil - 2 Stage Rotary Vane Pump, 3Ph 200V 50/60Hz / 380V 60Hz, A36404934
• E2M40 Standard pump for use with Ultragrade oil - 2 Stage Rotary Vane Pump, 3Ph 380-400V 50Hz / 460V 60Hz, A36404940
• E2M40 FX - (PFPE prepared) - 2 Stage Rotary Vane Pump, 3Ph 380-400V 50Hz / 230/460V 60Hz, A36417940
• E2M40 Standard pump for use with Ultragrade oil - 2 Stage Rotary Vane Pump, A36401000
• E2M40 AZ - 2 Stage Rotary Vane Pump, 3Ph 200V 50/60Hz / 380V 60Hz, A36407934
• E2M40 FX - 2 Stage Rotary Vane Pump, A36411000
• E2M40 FX - (PFPE prepared) - 2 Stage Rotary Vane Pump, 3Ph 200V 50Hz / 200/380V 60Hz, A36417934
• E2M40 - 2 Stage Rotary Vane Pump, 3Ph 380-400V 50Hz / 230/460V 60Hz, NRY7TT000
• E2M40 AZ - 2 Stage Rotary Vane Pump, 3Ph 380-400V 50Hz / 230/460V 60Hz, A36407940

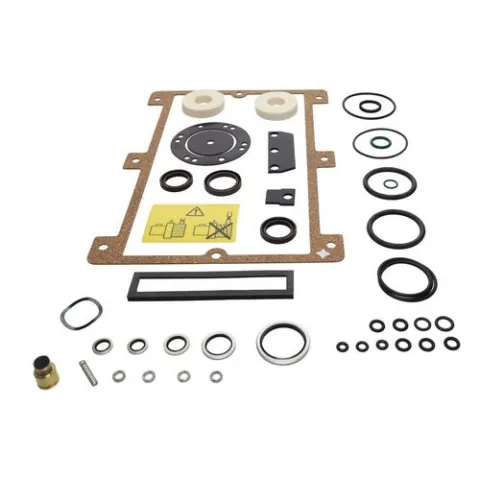

Kit includes:

• 2x O-Ring NIT 1.850ID x .210SEC
• 1x O-Ring NIT 61.61D x 2.4SEC
• 1x Dowty Bonded Seal MK B 1/4"BSP
• 1x Dowty Bonded Seal MK H 1" BSP
• 2x Dowty Bonded Seal MK A 1/8"BSP
• 1x Dowty Seal 3/4" BSF MkCC
• 1x Seal FKM GP 30.40.7 PLN
• 1x O-Ring NIT 9.6ID x 2.4SEC
• 2x Filter
• 4x Outlet Valve Cover Spacer
• 2x Seal FKM GP 25.35.6 UNILH
• 1x O-Ring NIT 5.6ID x 2.4SEC
• 1x O-Ring FKM GP 12.42IDX1.78SEC
• 1x O-Ring NIT 0.424ID x .103SEC
• 1x O-Ring FKM GP 0.734ID X .139SEC
• 5x O-Ring NIT 0.299ID x .103SEC
• 1x Oil Filter Seal
• 2x O-Ring NIT 0.174ID X .103SEC
• 1x Sight Glass Seal EDM65
• 1x Waved Washer
• 1x O-Ring NIT 64.51D x 3.0SEC
• 1x Ballast Piston Assy 40/80/175/
• 1x Label - Exhaust Warning
• 1x Ballast Valve
• 1x Blade Spring
• 1x Rubber Seal
• 1x Gasket
• 1x Exhaust Valve Rubber
• 1x Exhaust Valve Rubber
• 1x Oil Box Gasket
