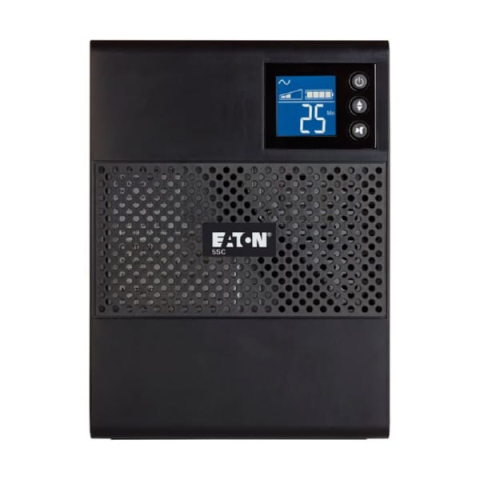

Eaton 5SC750G 5SC UPS, 750 VA, 525 W, C14 Input, Global, Outputs: (6) C13
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Click to zoom
'%3e%3cpath%20d='M30%205.625C36.4647%205.625%2042.6645%208.19307%2047.2357%2012.7643C51.8069%2017.3355%2054.375%2023.5353%2054.375%2030C54.375%2036.4647%2051.8069%2042.6645%2047.2357%2047.2357C42.6645%2051.8069%2036.4647%2054.375%2030%2054.375C23.5353%2054.375%2017.3355%2051.8069%2012.7643%2047.2357C8.19307%2042.6645%205.625%2036.4647%205.625%2030C5.625%2023.5353%208.19307%2017.3355%2012.7643%2012.7643C17.3355%208.19307%2023.5353%205.625%2030%205.625ZM30%2060C37.9565%2060%2045.5871%2056.8393%2051.2132%2051.2132C56.8393%2045.5871%2060%2037.9565%2060%2030C60%2022.0435%2056.8393%2014.4129%2051.2132%208.7868C45.5871%203.16071%2037.9565%200%2030%200C22.0435%200%2014.4129%203.16071%208.7868%208.7868C3.16071%2014.4129%200%2022.0435%200%2030C0%2037.9565%203.16071%2045.5871%208.7868%2051.2132C14.4129%2056.8393%2022.0435%2060%2030%2060ZM43.2422%2024.4922C44.3438%2023.3906%2044.3438%2021.6094%2043.2422%2020.5195C42.1406%2019.4297%2040.3594%2019.418%2039.2695%2020.5195L26.2617%2033.5273L20.7539%2028.0195C19.6523%2026.918%2017.8711%2026.918%2016.7812%2028.0195C15.6914%2029.1211%2015.6797%2030.9023%2016.7812%2031.9922L24.2812%2039.4922C25.3828%2040.5938%2027.1641%2040.5938%2028.2539%2039.4922L43.2422%2024.4922Z'%20fill='%2300A046'/%3e%3ccircle%20cx='30.5'%20cy='29.5'%20r='20.5'%20fill='white'/%3e%3cpath%20d='M21.8175%2037H18.7395L13.5915%2029.206V37H10.5135V24.364H13.5915L18.7395%2032.194V24.364H21.8175V37ZM27.1266%2026.83V29.386H31.2486V31.762H27.1266V34.534H31.7886V37H24.0486V24.364H31.7886V26.83H27.1266ZM51.1749%2024.364L47.8809%2037H44.1549L42.1389%2028.684L40.0509%2037H36.3249L33.1209%2024.364H36.4149L38.2329%2033.562L40.4829%2024.364H43.8669L46.0269%2033.562L47.8629%2024.364H51.1749Z'%20fill='%2300A046'/%3e%3c/g%3e%3cdefs%3e%3cclipPath%20id='clip0_10639_3631'%3e%3crect%20width='60'%20height='60'%20fill='white'/%3e%3c/clipPath%3e%3c/defs%3e%3c/svg%3e)
Overview
Package Includes:
- 5SC UPS
- USB, serial cable and software
- 2 IEC output power cords
- Warranty for connected equipment
- User manual and safety instructions
Why the 5SC?
- Ideal for protecting small business servers, network-attached storage (NAS), network equipment, ATMs, ticket machines and kiosks.
- Small footprint for easy integration within small spaces.
- USB port for automatic HID identification on Windows®, Mac® and Linux®.
- Pure sine wave output for sensitive equipment
Features:
- LCD: The LCD interface provides clear status of UPS key parameters such as input and output voltage, load and battery level, and estimated runtime. Configuration capabilities are also offered for output voltage, audible alarm and power input sensitivity.
- Battery life: Eaton's exclusive ABM® technology increases battery service life by 50 percent with easy front panel battery replacement to extend UPS service life.
- Manageability:
- USB, serial and relay connectivity: USB port is HID-compliant for automatic integration into Windows, Mac OS and Linux
- Eaton Intelligent Power Manager® (IPM): IPM software provides network power management. 5SC is managed over the network through a proxy server having Intelligent Power Protector (IPP) installed
- Reliable power protection:
- Pure sine wave output: When operating in battery mode, the 5SC provides a high-quality output signal for any sensitive equipment connected
- Buck and boost operation: The 5SC corrects a wide range of input voltage variations through continuous regulation without the use of batteries, and ensures consistent input voltage to the connected equipment
- Flexible integration:
- Convenient form factor: The 5SC fits easily into small spaces such as kiosks, cash machines and ticket machines while delivering flexibility with up to eight outlets
- Adjustable input waveform sensitivity: The 5SC is adaptable to specific environments, like genset
For more information, please see DataSheet
