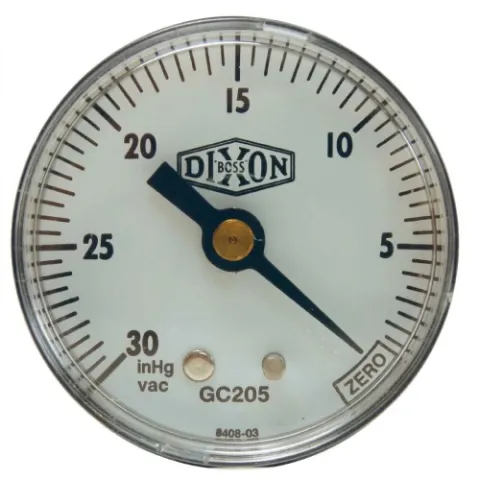

Dixon Valve GC205 Center Back Mount Vacuum Gauge, 2" Face, 1/4" Center Back Mount

Features:

• PowerFlex movement with polyester segment, designed for extended wear
• ASME B40.1, Grade B accuracy (± 3-2-3 % accuracy)
• 30" Mercury (Hg)
• Construction:
  • ABS plastic case
  • Bronze bourdon tube
  • Polycarbonate crystal
  • Black aluminum pointer

Applications:

• All of the gauges supplied by Dixon are designed for long, reliable service under rugged conditions. Typical applications include those on pumps, hydraulic and pneumatic systems, compressors, machine tools and many other installations where it is necessary to have a gauge with a non-corrosive movement.

For more information, please see Data Sheet
