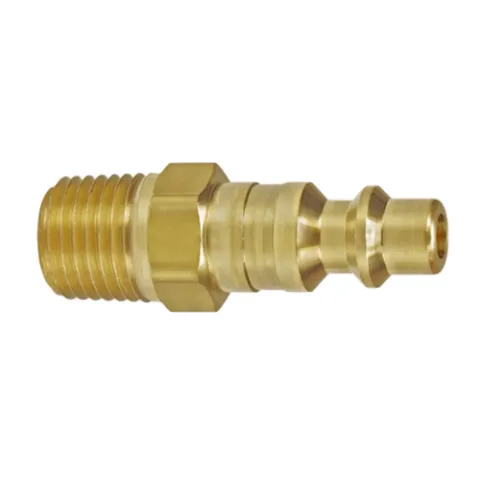

Dixon Valve D2M2-B DF-Series 1/4" Male NPTF Pneumatic Male Threaded Plug Brass

Compatibility & Interchange Data

• Foster 3, 4, 5 and 6 Series
• Parker 30 - Series Automatic Interchange & Parker 20-Series Manual Interchange
• Hansen 3000, 4000, 5000 and 6000 & Hansen 1000, 400 and 500

Construction

Machined components are manufactured using solid bar stock.

How It Works

• To disconnect, begin by holding the hose on the nipple side with three of your fingers, leaving your thumb and index finger free.
• Grab the sleeve with your thumb and index finger and begin to pull the sleeve towards the palm of your hand.
• After pulling the sleeve, the nipple will move out of the coupler slightly. Continue to hold the hose and coupler sleeve until all air is fully exhausted.
• After the line is fully exhausted, you are able to safely separate the nipple from the coupler.

Specifications

• Rated pressure when connected with Brass D-Series Automatic Couplers: 500 PSI (35 bar) Maximum Working and 16,000 PSI (1,100 bar) Burst
• Rated pressure when connected with Brass F-Series Manual Couplers: 300 PSI (20 bar) Maximum Working and 8,500 PSI (586 bar) Burst
