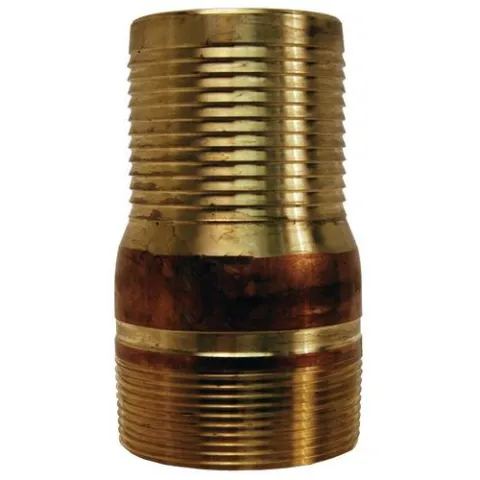

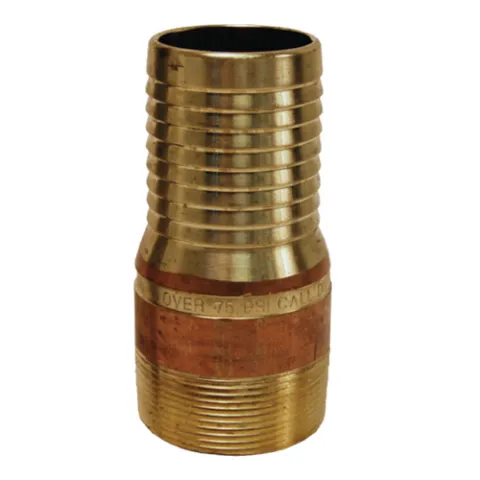

Dixon Valve BST35 3" King Combination Nipple NPT Threaded End No Knurl Brass

Applications

Recommended for low-pressure discharge and suction service for compatible liquids.

Construction

NPT threaded end no knurl.

Safety Notes

• King Combination Nipples are not recommended for steam.
• The working pressure may vary with the construction of the hose, the type of clamping system used and the application. Consult Dixon for recommendations.
• In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
• Not for compressible products such as air or nitrogen

Use

Crimp sleeves are available and recommended for reliable assemblies.
