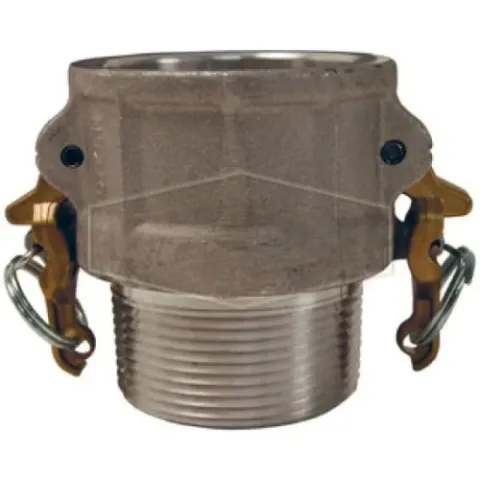

Dixon Valve AB125 Boss-Lock Cam and Groove Type B Coupler x Male NPT, 250 PSI, 356T6 Aluminum, 1-1/4"

Features:

• Boss-Lock Cam & Groove Type B Coupler x Male NPT
• Nitrile Rubber gasket
• Boss-Lock cam arms
• Supplied with pull-ring safety clips
• Under no circumstances should cam and groove couplings be used for compressed air or steam service!
• Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed.
• Produced to interchange with all product produced to Commercial Item Description A-A-59326D

How It Works:

• To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
• Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
• The cast-in lugs allow safety clips to be attached once the lugs are passed through slots in the special cam lever arms providing a positive locking action.
• The pull ring safety clip simplifies the locking action on Boss-Lock couplers. No more inserting clips or dangling lanyards, just a twist and it's locked, giving you a low profile positive locking action.

Applications:

• Designed for use with liquids

WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information, please see Data Sheet #1 and Data Sheet #2
