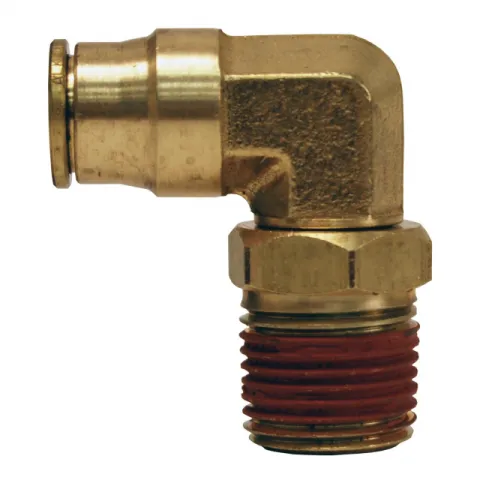

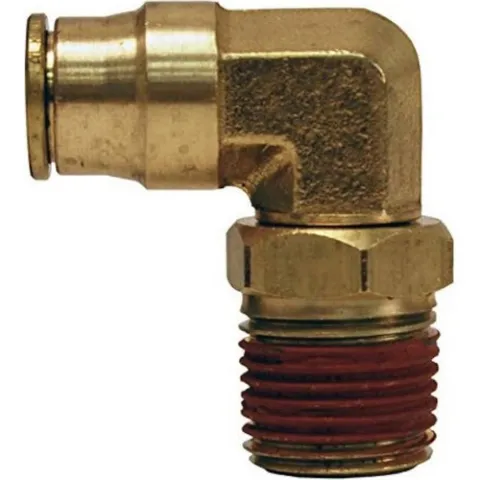

Dixon Valve 69S8X8 Push-In Male Swivel Elbow

Features

• Positive seal: no leaks, after tubing is inserted, seal is made
• Secure tube retention: pulling on tubing only serves to tighten the connection
• Full flow design provides up to 60% more flow than conventional fittings with internal tube supports.
• Pre-applied PTFE based pipe sealant on all male pipe threads saves customer additional labor.

Installation

• Saves up to 75% of assembly time versus the standard compression fittings.
• Quick connect: simply push tubing in, no tools required.
• Quick disconnect: hold two fingers on insert and pull tubing out, no tools required.
• Reusable: connect and disconnect numerous times

Safety Notes

Fittings are suitable for use up to the maximum working pressure of the plastic tubing used

Use

• Suitable for vacuum service
• Working pressure: suitable for use up to the maximum working pressure of the plastic tubing used.
