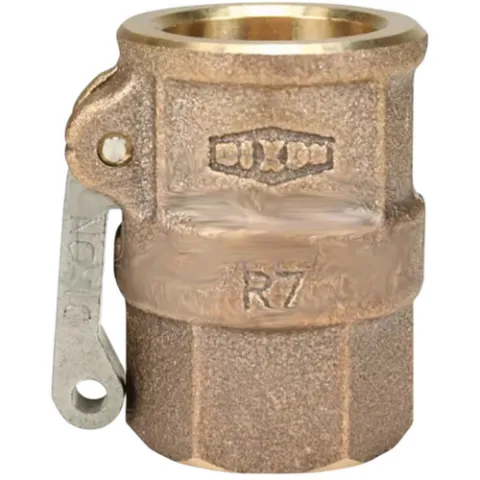

Dixon Valve 50-D-BR Cam & Groove Type D Coupler x Female NPT 1/2" Brass

Applications

Designed for use with liquids.

Construction

• Nitrile Rubber gasket
• 1/2" Dixon coupler has only one cam arm
• Durable stainless steel cam arm pins

Features

• Precision machined to rigid tolerances
• Stainless pins will not rust or bind, providing great strength and safety
• Recess holds gasket firmly in place - ensures proper placement
• Long shank design allows proper banding, thus eliminating the major cause of hose damage

How It Works

• To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
• Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Note

Finger rings are not supplied.

Safety Notes

• Under no circumstances should cam and groove couplings be used for compressed air or steam service!
• Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed.
• Dixon and Boss-Lock cam and groove couplings do not interchange in the 1/2" size.

Specifications

No standard exists for the 1/2" fittings, and generally does not interchange with other manufacturers.
