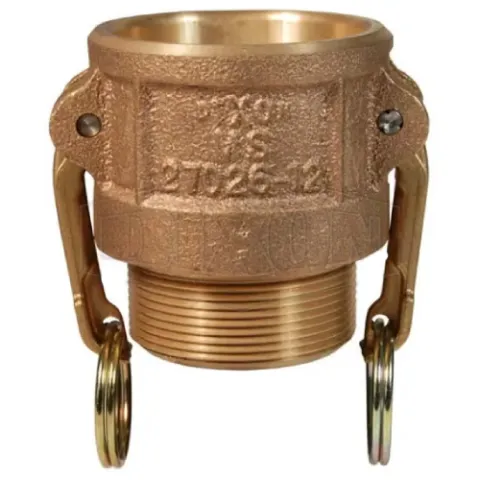

Dixon Valve 400-B-BR Cam and Groove Type B Coupler x Male NPT, Brass, 4"

Features:

• Precision machined to rigid tolerances
• Stainless pins will not rust or bind, providing great strength and safety
• Recess holds gasket firmly in place - ensures proper placement
• Nitrile Rubber gasket
• Durable stainless steel cam arm pins
• Produced to interchange with all product produced to Commercial Item Description A-A-59326D
• To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
• Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Applications:

• Designed for use with liquids

Safety Notes: Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.

For more information, please see Data Sheet #1 and Data Sheet #2
