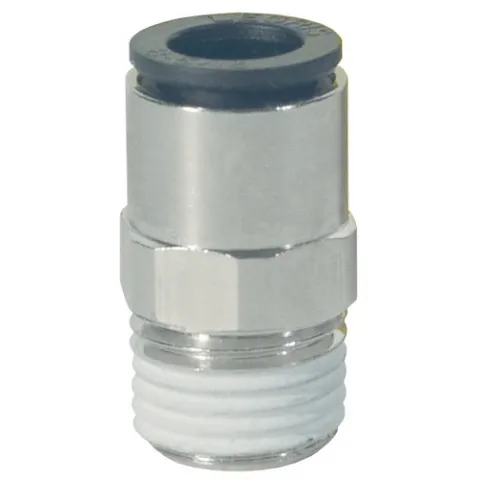

Dixon Valve 31755611 Nylon/Nickel-Plated Brass Push-In Male Connector 1/4" Tube OD x 1/8" Male Thread

Construction

• Nickel-plated brass threads
• Black body is glass-filled nylon
• Nitrile Rubber D seal
• Polypropylene release button
• Silicone free

Features

• Positive seal: sealing and holding is accomplished instantaneously
• Reusable: connect and disconnect numerous times
• Full flow: fitting seals on outside diameter of tubing
• Pre-applied thread sealant on all tapered male pipe threads

Installation

• Quick connect and disconnect, no tools required.
• To connect, simply push tubing in.
• To disconnect, press the release ring towards the fitting and pull tubing out.

Safety Notes

• Maximum circuit pressure depends equally on the type and diameter of the tube used.
• Pressure rating given at ambient temperature 70°F/21°C.

Use

• Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube
• Vacuum capability: vacuum of 28" Hg (99% vacuum)
