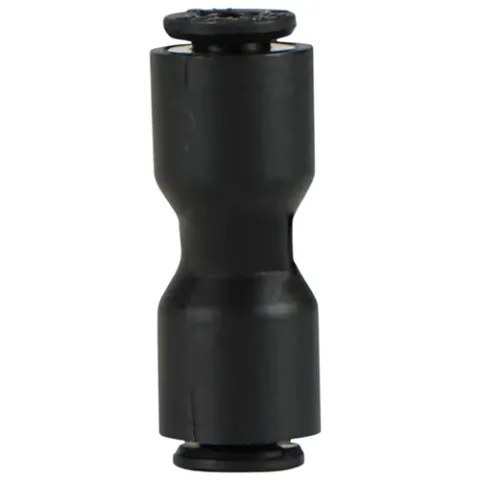

Dixon Valve 31066200 Nylon Push-In Union 1/2" Tube OD

Construction

• Black body is glass-filled nylon
• Nitrile Rubber D seal
• Polypropylene release button
• Silicone free

Features

• Positive seal: sealing and holding is accomplished instantaneously
• Reusable: connect and disconnect numerous times
• Full flow: fitting seals on outside diameter of tubing

Installation

• Quick connect and disconnect, no tools required.
• To connect, simply push tubing in.
• To disconnect, press the release ring towards the fitting and pull tubing out.

Safety Notes

• Maximum circuit pressure depends equally on the type and diameter of the tube used.
• Pressure rating given at ambient temperature 70°F/21°C.

Use

• Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube
• Vacuum capability: vacuum of 28" Hg (99% vacuum)
