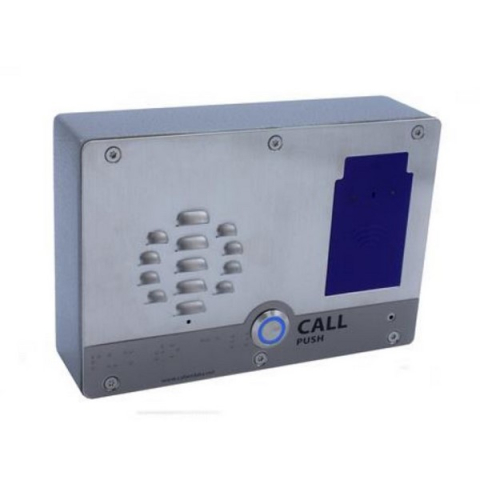

CyberData 011477 SIP Outdoor Intercom with RFID 10/100 Mbps

The CyberData SIP Outdoor Intercom with RFID is perfect for secure access settings requiring RFID access control and two-way communication. With encrypted RFID, the SIP Outdoor Intercom can increase the security of any VoIP installation. The product supports up to 500 RFID cards. A card with a blacklisted code will trigger a phone call with a pre-recorded message and/or a multicast stream to IP notification endpoints.

The access code list, designating valid entry times or blacklisted users, can be updated manually using the web interface, imported using the web page, or autoprovisioned using the same mechanism as a VoIP phone. For ease of managing your access list, it's recommended to use the 011425 RFID Secure Access Endpoint as a desktop enrollment device.

CyberData's SIP enabled VoIP products are compatible with a vast majority of VoIP systems including SBCs, Gateways, and phone systems both on-premise and cloud-based.

Features:

• Mifare Plus X 2K/4K cards are supported for a high level of encryption. This product comes with five RFID cards
• Built-in time of access scheduler
• Local and remote logging with time stamp
• NTP time support
• Supports 500 RFID Cards
• Blacklisted card alert via dialout or multicast
• Full duplex audio with enhanced acoustic echo cancelling
• Half duplex push-to-talk audio from the phone side using the phone's keypad or from the intercom side using the call button
• Simultaneous SIP and multicast
• Supports user-uploadable ring and alert tones
• Loud/Night Ringer function - second SIP extension
• Can receive pages directly from Poly phones as well as other devices that send standard multicast
• Alert buzzer
• Red/Green lock status lights
• DTMF-controlled dry relay contact for auxiliary control
• Door closure and tamper alert signal
• Network volume control
• Supports Outdoor Auxiliary Strobe Kit for IP66-rated outdoor visual notification
• TLS 1.2 enhanced security for IP endpoints in a local or cloud-based environment
• Autoprovisioning via HTTP, HTTPS, or TFTP
• HTTPS or HTTP web-based configuration. HTTPS is enabled by default
• Configurable event generation for device health and status monitoring
• 802.11q VLAN tagging
• Web-based upgradeable firmware
• Support for Cisco SRST resiliency

For more information, please see Data Sheet
