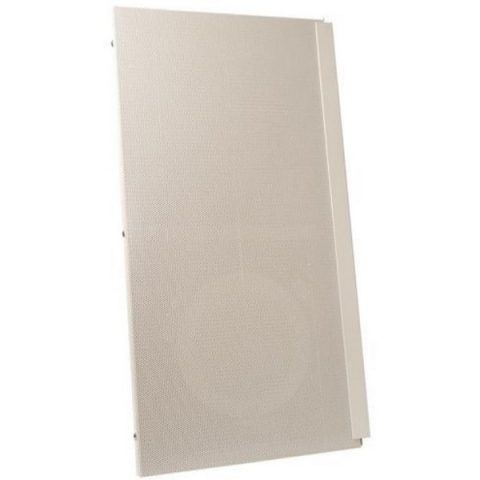

CyberData 011201 Ceiling Tile Drop-In Auxiliary Speaker

Now available from CyberData is the newest option for installing the CyberData Ceiling Speaker! This new design combines the market leader in IP Speakers the V2 Ceiling Speakers with the latest design in speaker mounts. It's streamlined and easy to install, with a 1' x 2' "drop-in" design. The CyberData SiP-enabled V2 Ceiling Speaker is a Power-over-Ethernet (PoE 802.3af) and Voice-over-IP (VoIP) public address loudspeaker that easily connects into existing local area networks with a single CAT5 cable connection. The speaker is compatible with most SiP-based IP PBX. In a non-SiP environment, the speaker is capable of playing audio from a multicast source.

Ringer Mode

The VoIP V2 Ceiling Speaker supports two SIP extensions. One extension can be assigned to a page group for auto answer paging. The second extension can be assigned to a "First-to-Answer" ring group with IP phones. An audio ring file is activated when the second SIP extension of the ceiling speaker is dialed. If any of the IP phones in the ring group is answered (or if the caller hangs up), the Ceiling Speaker stops ringing.

Features:

• Easy to install 1' x 2' Drop-in Design
• Aluminum construction
• SIP compatible
• Simultaneous SIP and multicast
• Web-based configuration
• Paging prioritization
• Plenum-rated enclosure
• Autoprovisioning
• High efficiency speaker driver
• Line-out connection
• Network speaker volume control
• Can drive one external analog speaker for greater coverage
• User-uploadable ring and alert tones

For more information, please see Data Sheet
