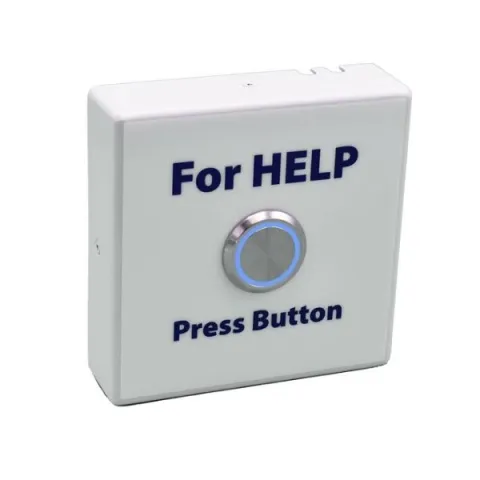

CyberData 011049 SIP Call/Alert Button 10/100 Mbps

The SIP Call/Alert Button is a reliable solution for a one-touch programmable call to an IP phone or page announcement. It can be mounted under a desk, on a wall, or in a discrete location. If an event takes place, the user depresses the button. The Call Button automatically makes a call to a pre-set phone or extension number. When the called number answers, the Call Button plays and repeats a stored audio file. This stored audio file is uploaded by the administrator to meet the needs of the installed location.

In a Singlewire InformaCast environment, the SIP Call/Alert Button registers to the Cisco Call Manager as a third party SIP endpoint. When the Call Button is depressed it makes a call to the Cisco Call Manager and the Singlewire InformaCast software detects that call and initiates an event.

CyberData's SIP enabled VoIP products are compatible with a vast majority of VOIP systems including SBCs, Gateways, and phone systems both on-premise and cloud-based.

Features:

• Supports call-in recording for the button and SIP multicast messages
• Single button call to pre-set number
• User downloadable message up to 80 seconds
• Continuous repeat of message
• Door closure and tamper alert signal
• Supports multiple user accounts, with distinct log in credentials
• Compatible with Cisco Call Manager
• DTMF-controlled Dry Relay Contact for auxiliary control
• Call progress light
• Supports Auxiliary RGB (Multi-Color) Strobe Kit for visual notification
• TLS 1.2 and SRTP enhanced security for IP Endpoints in a local or cloud-based environment
• Autoprovisioning via HTTPS, HTTP or TFTP
• HTTPS web-based configuration
• Configurable event generation for device health and status monitoring
• 802.11q VLAN tagging
• Support for Cisco SRST resiliency

Use Areas Include:

• Classrooms
• Banks or Financial Institutions
• Court Rooms
• Front lobby reception areas
• Grocery Store/Retail
• Assembly Lines

For more information, please see Data Sheet
