Cattron 4199-4110-2020 Messenger W SCADA Monitoring System, LTE/4G AT&T Modem, NEMA 4X Enclosure w/ Solid Door

The Messenger W is a basic SCADA monitoring system for small lift or pump stations, flow meters, level devices and power sources. The system monitors fixed assets in the field and transmits the data over a cellular network to RemoteIQ™ for alarm notifications, reports and more.

Includes:

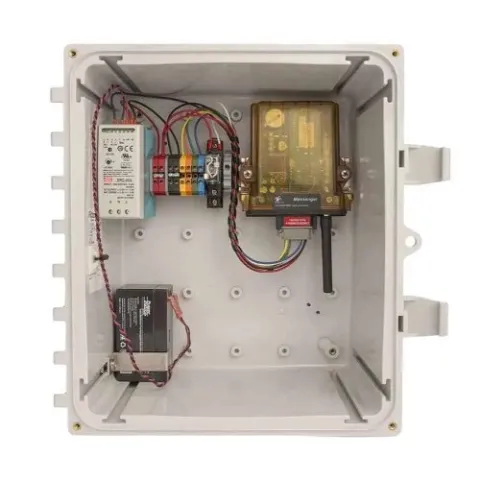

3 digital inputs, 1 analog input, 1 digital output (with cubed relay), LTE/4G AT&T modem, 40W internally mounted power supply, modem activation, backup battery, stubby LTE antenna and wiring kit in a NEMA 4X Enclosure w/solid door. Also included is pre-wired surge protector on analog input.

Features:

• Alarm notifications via email, text message or voice calls
• Three digital or pulse inputs capable of monitoring level, pumps, run-times or cycles and computing flow rates
• One analog input for monitoring flow, level, temperature, pH, UV or any other type of current input
• One Form C 12A relay output can be controlled remotely to turn a field device on or off, or used to activate a local audio or visual device such as a horn or light based on a critical event
• LTE cellular modem
• Status LEDs for power, alarms and modem communication
• Terminal blocks for easy wiring
• Achieve optimal equipment performance with RemoteIQ

Highlights:

• Wireless monitoring solution for small water and wastewater applications
• Applications include tanks, flow meters and smaller lift or pump stations.
• Reduces operating costs by reporting critical events, automating reports and minimizing site visits
• Monitors data and uses RemoteIQ to manage alarm notifications, system status and reports
• Peer-to-peer options for tank-to-well monitoring and control (utilize with Aquavx system)

For more information, please see Data Sheet, Start Guide and Manual
