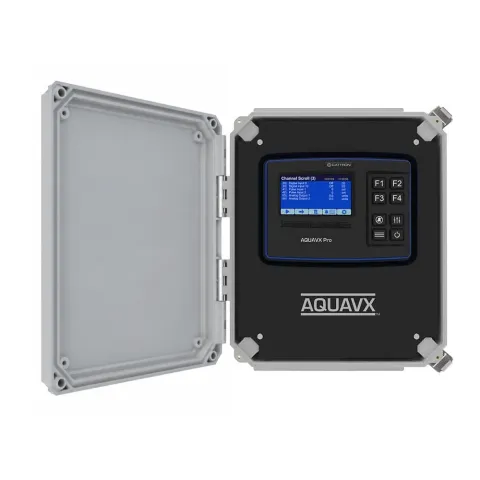

Cattron 3200-0000-3200 Aquavx Pro SCADA Remote Monitoring Device, CATM1/AT&T Cellular Modem, NEMA 4X Enclosure with Solid Door

The Aquavx™ Pro is a premium remote monitoring device powered by the RemoteIQ™ Water cloud platform for real-time monitoring and control.

In addition to a sunlight-viewable color display, the system has ten digital inputs, two pulse inputs, two analog inputs and three outputs. It also includes RS-232 and RS-485 with 16 built-in Modbus Master Registers.

Alarm notifications are sent via voice, text or email, alerting operators when there is a power failure, limits are exceeded, or communications are lost. Intuitive graphics and dashboards in RemoteIQ™ Water provide real-time insights into the performance of remote sites.

With the Aquavx Pro, there are no networks, engineering or third-party licenses to maintain. The system has an 18-hour backup battery with the option to increase to 72 hours. Loss of AC detection triggers a switch to the battery with additional outputs available for the sensor loop supply.

The Aquavx Pro is FirstNet compatible, ensuring priority access to network communication, with the optional modem.

Features:

• High-resolution, sunlight-viewable screen with color display
• 13 buttons used for navigation, configuration and viewing
• View run-times, cycles, levels, flow and totalized flow on the local display
• Control pumps, valves and other field devices
• View inflow, outflow and rain event totals
• Battery backup offers 18 hours standard with the option to expand up to 72 hours. Loss of AC powertriggers an automatic switchover to the battery. DC supply voltage available for sensor loop supply
• RemoteIQ Water cloud-based platform
• RS-232 and RS-485 with 16 Modbus registers built-in
• Surge protection for analog inputs
• Local relays can be automatically controlled based on preconfigured set points or conditions
• Peer-to-peer communications are compatible with the Aquavx Pro and Aquavx ProPlus

Highlights:

• Remote monitoring and control solution without the complexities of a full-scale SCADA system
• Powered by the RemoteIQ™ Water cloud platform for real-time remote monitoring and control
• For mid-sized municipal, industrial and commercial water and wastewater applications
• Standard I/O includes ten digital inputs, two pulse inputs, two analog inputs, one analog output, two relay outputs, one RS-232 only port and one RS-232/RS-485 with support for 16 Modbus Master Registers
• No networks to maintain, no engineering or third-party licensing requirements
• FirstNet compatible with optional LTE modem to ensure priority access to network communication

For more information, please see Data Sheet, Start Guide and Flyer
