Brigade Electronics 7685 DVS 2020 Upgrade to PSS 2024 Kit for Left-Hand Drive Vehicle (Including RP-010 & FR-001DVS)

DVS 2020 Upgrade to PSS 2024 Kit for Left-Hand Drive Vehicle

Brigade has compiled Direct Vision Standard (DVS) compliant kits to help you get compliant. These kits are suited for both articulated and rigid trucks. These kits include products for full DVS compliance, upgrading from 1 and 2 stars and for vehicles that already meet the 3-star requirement. If your vehicle is GSR compliant, then only a warning alarm and sticker will be required.

For customers who currently already comply to DVS Phase 1 (Safe Permit) but need to upgrade to the PSS (Progressive Safe System)

Features:

• Kit Model No: BSIS-MOIS-010
• Kit Part No. 7685

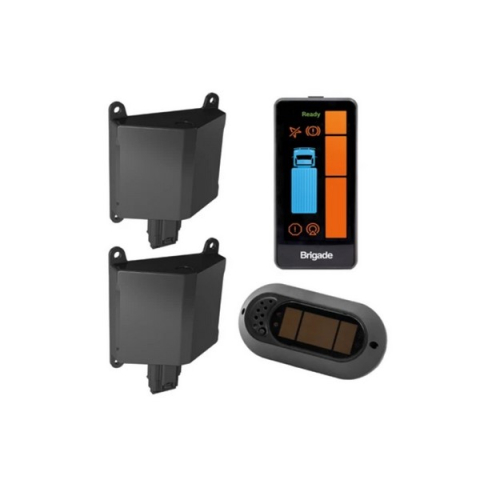

Package Contents:

• RP-010: Radar Predict AI Sensor System
• FR-001DVS: DVS Front Radar Sensor System
• A3 DVS Sticker

RP-010 - 77GHz Radar Predict sensor system with AI for left-hand drive vehicles

Radar Predict is an award-winning advanced collision prediction system specifically design ed to protect cyclists from collisions with HGVs. Using AI technology, the single dual-radar analyzes data such as the speed and direction of both the vehicle and the cyclist. By differentiating between static and moving objects, the Radar Predict algorithm alerts the driver when an impact with a cyclist is likely.

Ideal for articulated vehicles, Radar Predict incorporates a trailer discovery mode to eliminate false alerts when the vehicle is turning. This cutting-edge technology aids drivers by presenting visual cues via yellow warning LEDs and audible alerts, guaranteeing prompt intervention and the protection of road users from possible collisions.

The single dual-radar unit is fitted on the nearside of the truck and gives complete coverage to the side of the vehicle, including the trailer unit. The self-learning mode detects whether the vehicle is fitted with a trailer and prevents articulation causing false alerts. The driver is alerted if a cyclist enters the detection zone and receives a second warning if a collision is predicted.

Features:

• 180° cyclist side detection
• Calculates if a collision is likely in the nearside blindspot
• Covers nearside of a vehicle
• 3 stage Visual alert when a cyclist is detected
• Audible and visual alert when collisions predicted
• Differentiates between cyclists and vehicles/other road users
• Designed for rigid and articulated vehicles
• System active under 30Km/h
• Quick and easy installation
• Compact and rugged design for harsh environments
• Automatic trailer recognition
• Operating frequency: 76-77GHz
• Adjustable display volume
• Power consumption: 6.5 Watts

Durability & Standards:

• Operating temperature: -40 to +85°C
• CE marked
• UKCA marked
• FCC approved
• IC approved
• E-Marked: UNECE R10 compliant
• Complies with UNECE reg151 requirements
• Meets 2024 Direct Vision Standard BSIS requirements

FR-001DVS - DVS Front Radar Sensor System

Brigade's Front Radar sensor are specifically designed to meet the 2024 DVS requirements. DVS Front Radars are advanced dual-radar collision prediction systems with a 180° detection angle to the front of the vehicle. The driver is alerted via the front assist radar, through visual and audible signals if a vulnerable road user is detected in close proximity.

The Benefits of Front Radar:

• Blind Spot Monitoring - Enhanced dual radar technology to detect pedestrians and cyclists in blind spots in front of the vehicle
• Visual and Audible Alerts - Alerts drivers through visual and audible signals if a vulnerable road user is detected close to the vehicle when stationary, as well as when the vehicle is moving off
• Real-time Feedback - Provides real-time warnings to drivers for immediate reaction to prevent a collision
• Plug and Play System - Only requires power from the vehicle

Features:

• 180° detection angle
• Detects VRUs in the front blind spot when the vehicle is stationary or moving off
• Detects static and moving objects
• 3-stage visual driver alert dependent on detection distance from vehicle
• Audible and visual driver alert when object is detected and vehicle is moving forward
• Designed for rigid and articulated vehicles
• System active under 5Km/h
• Quick and easy installation
• Compact and rugged design for harsh environments
• Operating frequency: 76-77GHz
• Adjustable display volume
• Self-adjusting brightness display
• Power consumption: 6.5 Watts

Durability & Standards:

• Operating temperature: -40° to +85°C
• CE marked
• E-Marked: UNECE R10 compliant
• Meet 2024 PSS Direct Vision Standard MOIS requirements
