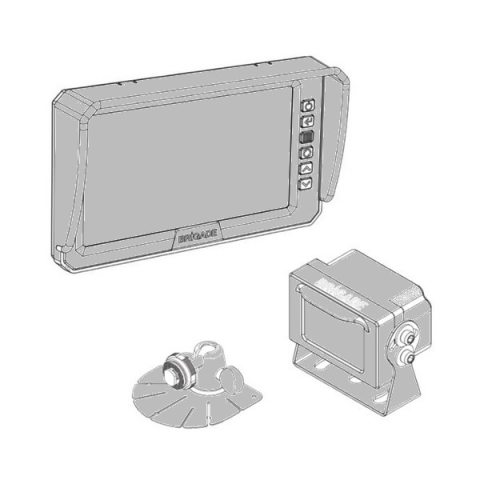

Brigade Electronics 7595 AHD 1080p Camera Kit 7" Monitor 20m Cable (PAL & NTSC)

AHD 1080p Camera Kit, 7 Inch Monitor, 20m Cable (PAL & NTSC)

Features:

• Digital LCD Panel
• On Screen Display Menu (OSD)
• 7 x On Screen Display (OSD) Languages: (English, Dutch, French, Spanish, Italian, Portuguese and Chinese).

Environmental Specifications:

• Operating Temperature: -20° to +70°C
• IP Rating: Camera Only IP69K
• IP Rating: Monitor IP30
• Vibration Resistance: 5.9G

Approved Standards:

• CE - (EN 61000-6-2:2019 / EN 61000-6-3:2021 BS EN 55032:2015+A1:2020 / BS EN 55035:2017+A11:2020
• FCC - (47 CFR Part 15 Subpart B)
• ICES-003 Class B Issue 7 October 2020

Technical Specifications:

• Operating Voltage: 12-24Vdc
• Current Consumption: 350mA max. at 12Vdc

Power Consumption:

• (Monitor): 4.2W max. at 12Vdc
• (Camera): IR Off: 75mA(Max), IR ON: 215mA(Max)

TV System:

• VBV-6132C PAL & NTSC (Switching cable) Panel
• Size: 7" TFT LCD Monitor
• Wide Screen Display: 16:9

Resolution:

• Monitor: 1024x600
• Camera: 1920x1080 - AHD 1080P
• Monitor Video input: AHD 1080P/720P/CVBS
• Contrast Ratio: 500:1
• Brightness: 400 cd/m²

Viewing Angle:

• Monitor: 85°(L), 85°(R), 85°(B), 85°(T)
• Camera: VBV-6132C:106°(H),56°(V),120°(D)
• Number of Video Inputs: 2 x 4 Pin VBV Connectors
• Number of Triggers In:1
• Number of Triggers Out: None
• Mirror/Normal: Mirror
• IR: 0.1 LUX (IR LED ON)
• IR: Distance: 8-10m

Weight:

• System: 1.588kg
• Monitor Only: 0.712kg
• Camera Only: 0.219kg
• Extension cable: 0.657kg

Video Input:

• 1.0Vp-p/75kΩ (PAL/NTSC)

Length of Cables:

• Monitor: 1900 ± 50mm
• Camera : 640 ± 50mm
• Extension Cable: 20000 ± 50mm

Overall Dimensions:

• Monitor (Without Bracket): 194(W)x118(H)x24.5(D) (mm)
• Camera (With Bracket): 76(W)x59(H)x54.5(D) (mm)

Casing Material:

• Monitor: ABS
• Camera: ADC12 Aluminium Alloy

Color/Finish:

• Black / Textured

Package Includes:

• 1 x VBV-6170M Monitor & Sunshield
• 1 x VBV-6132C Camera & Bracket
• 1 x VBV-L4120 20m Extension Cable
• 1 x VBV-670M-BKT Monitor Bracket
• 1 x VBV-613XC- FIX Camera Fitting Kit
