Brigade Electronics 7487 Connected AI Dashcam 4 Channel 1080p (NA) 30 fps (12-24VDC) for North America

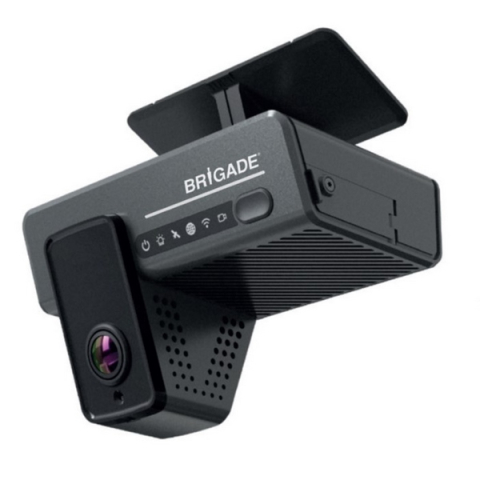

The AI Connected Dashcam is a compact, windscreen-mounted dual camera system that uses AI technology to provide event warnings, high-definition incident recording and monitor driver behaviour.

Using artificial intelligence, the forward-facing camera will identify and audibly alert a driver to a hazardous situation, such as a risk of colliding with the vehicle ahead or an unsignalled lane departure.  With AI dashcams providing real-time audio alerts, the driver can take immediate action to prevent a potential incident.

The driver-facing camera will identify issues such as mobile use, smoking and inattention. Alerts and video of events are sent to a remote dashboard in real-time which can prove invaluable for fleet managers. Reviewing in-cab footage and analysing driving habits with an AI dashcam can identify high-risk situations and behaviours so that training programmes can be implemented to promote a safe driving culture and improve overall driver safety.

• Artificial Intelligence - AI audible alerts warn the driver of high risk situations to help avoid a collision.
• 4G Connected - Built in 4G allows users to monitor fleets on the move and remotely view and download footage.
• Storage - Supports up to 1TB storage (256GB supplied).
• High-Definition - 1920P forward facing and 1080P driver facing cameras for clearer identification of registrations, faces and incident detail.

Technical Specifications:

• Memory microSD memory card
• Camera sensor - Forward facing: 1/2.7" 5-megapixel CMOS sensor
• Angle of view - Forward facing 140°
• Video - Forward facing 1920P/ H.264 /H.265
• Frame rate - Maximum 30 fps
• Audio - ADPCM, G.711, and G.726
• Six-axis Sensor - Harsh acceleration, harsh deceleration, harsh cornering, and incident detection
• GPS - Internal GPS receiver
• Power input - DC 12/24V supported
• Power consumption - 12.66W Full load, Dual MSD Cards, SIM, IPC, AHD and Wi-Fi
• LED Indicator - Status LEDs
• 4G - Plug-in SIM card (Nano SIM card)
  • LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
  • WCDMA: B2/B4/B5
• Alarm 4 sensor inputs
• Operating temperature -40°C - +70°C (-40°F - +158°F)
• Storage temperature -40°C - +85°C (-40°F - + 185°F)
• Certifications UKCA, CE, FCC, IC & E-Mark Reg 10 Rev 06

Package Contents:

• 1 x DC-204-AI
• 2 x DC-204-Al-128GB-MSD (128GB Micro SD card)
• 1 x DC-204-AI-PL-01 (Power Lead)
• 1 x DC-204-AI-B-01 (Bracket assembly - Bracket, 3M VHB pad, bolt+washer and cleaning wipe)
• 1 x DC-204-AI-PB-01 (Power Box with cable)
• 1 x DC-204-AI-TD (Torx driver (T6))
• 1 x QR-QSG (DC-204-AI-QSG Link Card)
