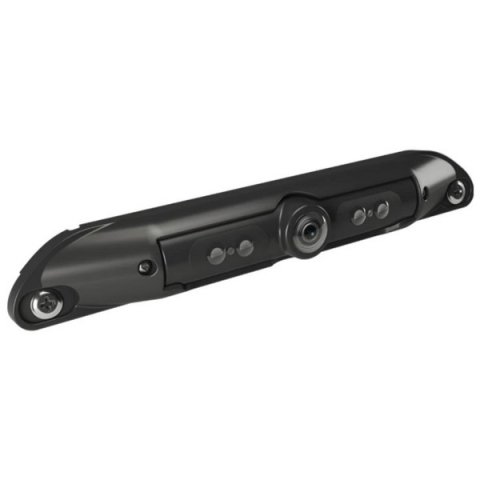

Brigade Electronics 7353 Rear Number Plate Camera 720p AHD with LEDs IP69K - NTSC

Brigade Van camera monitor systems enable drivers to maneuver and drive safely. Cameras can help the driver to see blind spots and offer a backup aid by delivering a live feed on the monitor of everything in the camera view, including people or obstacles. All cameras are compatible with Brigade Van recorders.

Features:

• Angle adjustment (Horizontal)
• Night Vision via 4 high Power Infrared LEDs enabled by integrated Day/Nigh sensor
• High Quality Pixel CMOS
• Electronic Shutter
• Automatic White Balance
• VBV Type Female Connector
• Auto Exposure
• Integrated Microphone

Environmental Specifications:

• Operating Temperature: -20° to +70°C
• IP Rating: IPX9K

Technical Specifications:

• Operating Voltage: 12 Vdc ± 10%
• Current Consumption: 65±10mA w/o IR on, and 94±10mA with IR on - 130mA Max
• Imaging Device: CMOS 1/2.9" 1.3M Pixel
• TV System: BL-2131C 30fps NTSC
• Picture Elements: 1080(H) x 720(V)
• Visual Resolution: 720P AHD
• Lens Focial Length: 1.98mm
• Viewing Angle: 145°(H), 80°(V), 165.6 (D)
• Assembled Weight: 300 Grams
• Video Output: Approx 1.0 Vp-p / 75Ω
• Length of Cable: Overall Dimensions: 68mm(W) x 42mm(D) x 215mm(L)
• Housing Material: Metal
• Camera View: Fixed - Mirror
• Finish: Black

Approved Standards:

• CE/UKCA
• ICES
• FCC
• RoHS
• REACH
• WEEE

Package Includes:

• 1 x BL-2131C (7353) - Camera
