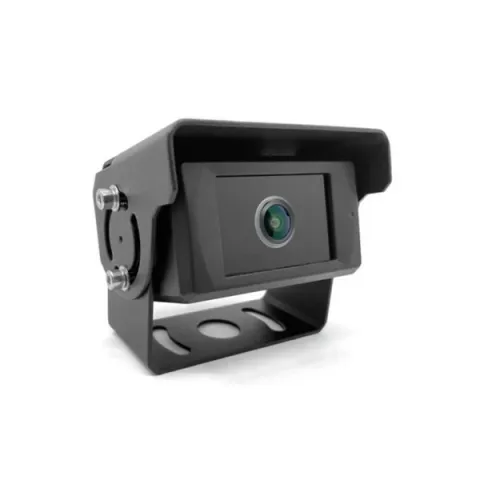

Brigade Electronics 7321 AI-Pedestrian Detection (1080p) Forward Facing Camera 25fps 12-24Vdc

Reduce Blind Spots and Prevent Collisions

The size of commercial vehicles and machines mean vehicle blind spots are a major factor in collisions across all industries.

Operator positions, bodywork, bulkheads and absent rear windows create further restrictions and can greatly limit driver visibility, making collisions even more likely. The significant financial cost of vehicle and property damage is magnified by associated costs such as downtime but even greater, are the corporate and emotional costs when there is personal injury.

Brigade's camera monitor systems enable drivers and operators to manoeuvre and drive safely. Vehicle-mounted CCTV cameras can help the driver to see blind spots and provide a reversing aid by delivering a live feed on the monitor of everything in the camera view, including people or obstacles.

Features:

• High Definition AHD 1080P
• Recognises and alerts the driver to people in the front and rear blind-spot
• Detected people are shown in colored boxes overlayed onto the camera image
• Image processing and detected-person overlay directly from the camera unit
• Plug and play: The AI camera connects directly to the Brigade monitor and/or optional internal buzzer or external alarm
• Brigade Select range connectors
• Compatible with all Brigade HD monitors and MDR recorders
• Alarm trigger output: 12V
• Detection Range: 19 metres Max
• Pedestrian detection warning box
• Audio alarm output through monitor
• Alarm trigger output when using VBV-2220C-CA
• Camera is 8 pin connection, when using VBV-2220C-CA this changes to the standard
• 4 pin VBV Type Female Connector (Included in kit)

Environmental Specifications:

• Operating Temperature: -20° to + 70°C
• IP Rating: IP69K
• Vibration Resistance: 5.9G

Technical Specifications:

• Operating Voltage: DC 1 0V-32V
• Current Consumption: 260mA at12V, 140mA at24V
• Maximum Current Trigger for VBV-2220C-CA: 500mA
• TV Systems: 30fps
• Picture Elements: 1920 X 1080P
• Visual Resolution: 1080P AHD
• Viewing Angles: 52° (H), vertical 30°M
• Video Output: Approx 1.0 Vp-p / 750
• Length of Cable: 390mm
• Overall Dimensions: 97.5 x 75.3 x 72mm
• Housing Material: Metal
• Finish: Black
• Assembled Weight: 500 Grams

Approved Standards:

• E-Mark - UN-ECE Regulation 10.06
• CE - EN IEC 61000-6-2:2019 / EN IEC 61000-6-3:2021
• UKCA - BS EN IEC 61000-6-3:2021 / BS EN IEC 61000-6-2:2019
• FCC - FCC Part 15B, Class B
• ICES - ICES-003, Class B
• REACH
• WEEE

Package Includes:

• 1 x VBV-2220C-AI-D04 (7321) - Camera
• 1 x VBV-2220C-CA (S7346) - Camera cable adapter
• 1 x VBV-2220C-AI-D04-QR (7338) - QR link card
• 1 x VBV-2220C-AI-AK3 (7345) - 3mm Allen Key
