Brigade Electronics 7296 Backeye360 AHD Camera System with 7" AHD Monitor for Large Rigid Vehicles

Backeye^®360 Camera Monitor Kit VBV-770H-3001: Single AHD eyeball camera monitor system for rigid vehicles

Suitable for large rigid vehicles.

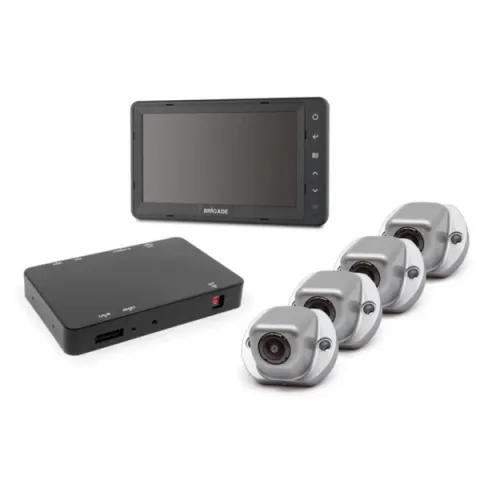

Kit includes:

• 1 x VBV-770HM: 7" AHD monitor
• 1 x BN360-300: AHD 360° camera system
• 1 x BN360-H310: 10m camera cable
• 2 x BN360-H315: 15m camera cable
• 1 x BN360-H320: 20m camera cable

VBV-770HM: 7″ AHD monitor (Part Number 5611):

Features:

• AHD and CVBS compatible with automatic signal detection (see list of all supported TV systems)
• High-definition, high-contrast, wide viewing angle digital LCD with LED backlight
• Low reflection TFT LCD (Anti Glare Coating)
• Integrated light sensor for backlight dimming
• Illuminated touch keypad
• Keypad disable/lock via OSD menu
• Integrated large speaker
• 10 x On Screen Display (OSD) languages: (English, French, German, Spanish, Turkish, Italian, Dutch, Portuguese, Russian, Polish)
• Configurable trigger off delay (0-20 sec.)
• Configurable trigger input functions
• Configurable auto scan delay (0-20 sec.)
• 2 variations of digital on screen markers
• Compatible with Remote Control VBV-7X0DM-RC
• 5-pin shutter camera support via adapter cable AC-035

Picture Quality:

• LED backlighting (gives 20,000 hours life)
• Anti-glare screen
• Resolution: 1024 x 600
• Contrast ratio: 700:1
• Brightness: 500cd/m2
• Viewing angles: Side 85° x Top 85° x Bottom 85°

Power:

• Power consumption: 10 Watts
• Current: 0.8 Amps

Environmental Specifications:

• Shock Rating: 51 G (All 3 axis - 6 directions)
• Vibration Rating: 3 G (All 3 axis each 32hr random)
• Connector IP Rating: IP40
• Monitor IP Rating: IP30
• Operating Temperature: -30°C to +70°C
• Storage Temperature: -40°C to +85°C

Approved Standards:

• CE - (Electromagnetic Compatibility Directive 2014/30/EU, RoHS)
• UKCA (Electromagnetic Compatibility Regulations S.I. 2016/1091, RoHS)
• ‘E' Mark - (UNECE Regulation 10 Rev 06)
• FCC - (47 CFR Part 15 Subpart B)
• IC - (ICES-003:2016, Issue 7 Class B)
• Elements of ISO 16750
• REACH
• WEEE

BN360-300: AHD 360° camera system:

Features:

• 720p HD 360° image
• 15 different view modes (10 x landscape & 5 x portrait configurations)
  • Front & rear crossing-traffic
  • Customizable vehicle position
• 2 pre-defined configuration groups
• Configure & customize set up via PC calibration software
• Left, right, reverse & speed signal triggers
• Configurable on-screen parking markers
• Customizable overlay guidelines per camera view
• 2 x video outputs
• Ultra-wide viewing angle cameras: (HxV) 182° x 118°
• 1/4" CMOS sensor
• Video output: AHD 1.0 and NTSC
• 360° view and individual channels recordable on Brigade MDR recorders
  The system utilizes four ultra-wide viewing angle cameras with IP69K rating for maximum durability. For replacement components or individual camera units, consider Backeye360 cameras with specialized mounting options.
• Customisable 360° views: Landscape or portrait configurations, Front and rear crossing traffic views, Customisable vehicle position in 360° view
• Configurable functions (triggers, speed etc.) via Backeye 360 Configuration Tool
• Configurable on screen parking markers and overlays
• Compatible with Brigade's MDRs for recording of individual camera signals.

Power:

• Power consumption: 15 Watts
• Current: 1.22 Amps

Environmental Specifications:

• Shock Rating: 51G (All 3 Axis - 6 directions)
• Vibration Rating: 8.5G (All 3 Axis - 32hrs each)
• Camera + Connector IP Rating: IP69K and IP68
• ECU IP Rating: IP30
• Operating Temperature: -30° to +75°C
• Storage Temperature: -40° to +85°C

Approved Standards:

• E-Mark - (UNECE Reg. 10 Rev. 05) (UNECE Reg. 46 Rev. 06, BN360-300 with VBV-770HM)
• CE - (EN 50498:2010)
• FCC - (47 CFR Part 15 Subpart B, Class A)
• Industry Canada - (ICES-003:2016, Issue 6, Class A)
• Earth Moving & Construction Machinery - (ISO 13766:2018)
• Elements of ISO 16750
• Ingress Protection - (ISO 20653:2013)
• WEEE
• RoHS
