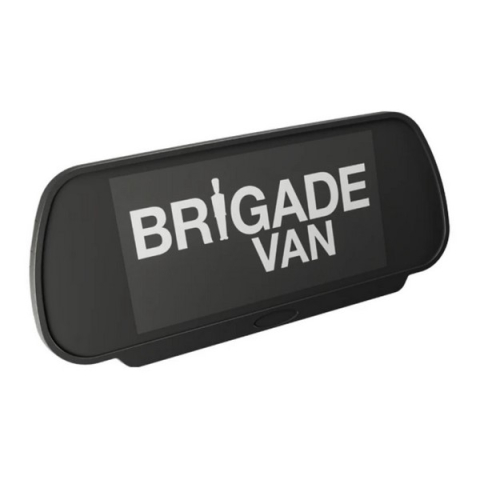

Brigade Electronics 7153 7" FHD Mirror Monitor ADH 2 Inputs 2 Audio

Brigade Van camera monitor systems enable drivers to maneuver and drive safely. Cameras can help the driver to see blind spots and offer a backup aid by delivering a live feed on the monitor of everything in the camera view, including people or obstacles. All cameras are compatible with Brigade Van recorders.

Features:

• LCD Panel
• On Screen Display Menu (OSD)

Environmental Specifications:

• Vibration Rating: 10G
• Operating Temperature: -30° to +70°C
• Storage Temperature: -40° to +80°C

Technical Specifications:

• Operating Voltage: 12/36 Vdc
• Current Consumption: 300mA
• Power Consumption: 3.6W (no cameras connected)
• TV system: PAL/NTSC
• Panel size: 7 inch
• Resolution: 1024*3(RGB)*600
• Brightness: 520cd/m2
• Number of Video Inputs: 2 Camera
• Number of Triggers In: 2
• Visual Resolution Input support: 1080P/720P/CVBS
• Assembled Weight: 0.64kg
• Video Output: Approx 1.0 Vp-p / 75Ω
• Length of Cable: 50cm
• Overall Dimensions: 250.3mm(W) x 107.3mm(H) x 40.2mm(D)
• Housing Material: Plastic
• Finish: Black

Approved Standards:

• CE
• UKCA
• RoHS
• REACH
• WEEE

Package Includes:

• 1 x BL-270HM (7153) - Monitor
• 1 x BL-270HM-PC - Power cable
• 1 x BL-270HM-BKT - Metal bracket (fitted to back of monitor)
