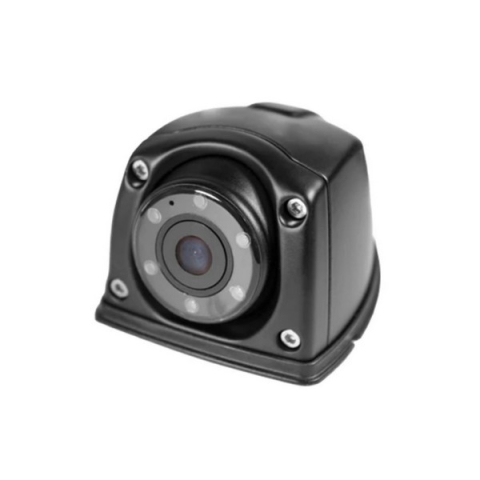

Brigade Electronics 7146 Select Compact Flush-mount Eyeball Camera HD (Normal Image) 1080p 30fps

Reduce Blind Spots and Prevent Collisions

The size of commercial vehicles and machines mean vehicle blind spots are a major factor in collisions across all industries.

Operator positions, bodywork, bulkheads and absent rear windows create further restrictions and can greatly limit driver visibility, making collisions even more likely. The significant financial cost of vehicle and property damage is magnified by associated costs such as downtime but even greater, are the corporate and emotional costs when there is personal injury.

Brigade's camera monitor systems enable drivers and operators to manoeuvre and drive safely. Vehicle-mounted CCTV cameras can help the driver to see blind spots and provide a reversing aid by delivering a live feed on the monitor of everything in the camera view, including people or obstacles.

Features:

• High-definition 1080p AHD 2.0 picture quality
• Fully adjustable ball position
• Night Vision via 5 x High Power Infrared LEDs enabled by integrated Day / Night sensor
• Integrated Microphone
• High Quality CMOS & ISP
• Back Light Compensation
• Automatic White Balance
• Wide Dynamic Range
• Fixed IRIS
• VBV Type Female Connector
• Ball adjustment allows mounting on any flat surface

Power:

• Power consumption: 1.6 Watts
• Current consumption: 0.112 Amps

Environmental Specifications:

• Shock Rating: 51G (All 3 Axis - 6 directions)
• Vibration Rating: 8.5G (All 3 Axis - 32hrs each)
• Camera IP Rating: IP69K
• Connector IP Rating: IP67
• Operating Temperature: -30° to +70°C
• Storage Temperature: -40° to +85°C

Technical Specifications:

• Operating Voltage: 12Vdc ± 2Vdc
• Current Consumption: ≤112 mA at 14Vdc
• Power Consumption: ≤1.6 Watts at 14Vdc
• TV System: AHD 2.0 (1080p-30 fps)
• Visual Resolution: 900 TV Lines
• Picture elements: 1920(H) x 1080(V)
• Lens Focal Length: 2.3mm
• Required Illumination: 0 Lux (IR LED ON)
• Illumination Area: Approx. 4m (L) x 3m (W)
• Ball rotation: ±180º
• Ball adjustment: Up 26°; Down 4°; Left / Right 4°
• Viewing Angle: 130° (H), 70° (V), 151° (D)
• Assembled Weight: 160 grams
• Video Output: Approx. 1 Vp-p / 75Ω
• Length of Cable: 1000 ± 30mm
• Overall Dimensions: 57mm (W) x 70mm (D) x 42mm (H)
• Housing Material: Aluminium Alloy
• Camera View: Fixed - Normal
• Finish: Black

Approved Standards:

• E-Mark - (UNECE Regulation 10 Rev 06)
• CE - (Electromagnetic Compatibility Directive 2014/30/EU, RoHS)
• UKCA - (Electromagnetic Compatibility Regulations SI 2016/1091, RoHS)
• FCC - (47 CFR Part 15 Subpart B)
• Industry Canada - (ICES-003: Issue 7, 2020)
• Ingress Protection - (ISO 20653:2006)
• Elements of ISO 16750
• REACH
• WEEE

Package Includes:

• 1 x VBV-3121C - Camera Ball Only
• 1 x Rear Housing
• 1 x Front Housing
• 1 x Rubber Mat
• 1 x Fixing Pack
• 1 x Installation Guide
