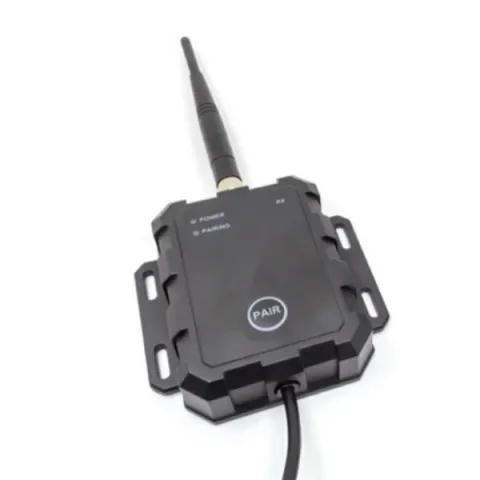

Brigade Electronics 7089 AHD Digital Wireless Receiver (PAL) 12-24VDC

Adapter required to connect Elite range camera and monitor.

Features:

• CVBS, AHD 720P and 1080P compatible
• Image Latency: 200 milliseconds
• No need for retractable coiled cables
• Reduces installation time
• Re-pair facility allows for interchangeable trailers
• Triggered by reverse gear
• Up to two transmitters can be paired to one receiver
• TV System AUTO
• Secure connection
• Easy 1-button pairing
• VBV Select range connectors

Power consumption:

• 0.12 Watts

Environmental Specifications:

• Module IP Rating: IP69K
• Operating Temperature: -20° to +70°C RH90%
• Storage Temperature: -30° to +80°C RH90%

Technical Specifications:

• Operating Voltage:
  • 12Vdc ±2V
  • Powered from an additional accessory. E.g. Monitor or DVR
• Current Consumption: ≤124mA (at 12Vdc)
• Overall Dimensions: 105mm(W) x 106mm(D) x 25.2mm(H) (Excluding Antenna)
• Length of Cable: 1000 ± 30mm
• Assembled Weight: 420 Grams
• AV Out: AHD / CVBS
• Housing Material: Aluminium
• Finish: Matt Black
• Connector: 4 Pin Shield Female
• TV System: AUTO
• Operating Frequency: 2400 - 2483.5MHz
• Line of sight Transmission: Approximate ≥100m
• Video Codec: H.264
• RF Bit Rate: Set to 6Mbps (12Mbps Max)
• Spread Spectrum: FHSS
• Time Delay: 200ms

Approved Standards:

• CE (ETSI EN 300 328 Ver. 2.2.2, ETSI EN 301 489-1 Ver. 2.2.3 (2019-11) , ETSI EN 301 489-17 Ver. 3.2.4 (2020-09), EN 62311:2008
• FCC Part15 subpart B: 2021, 47 CFR PART 15 Subpart C section 15.247
• Vibration ISO 16750-3 (4.1.2.8)
• Temperature ISO 16750-4
• Environmental ISO 20653:2013 (IP69K)
• ICES-003 Issue 3

Package Includes:

• Receiver - DW-2000RX-M
• WIFI Antenna - DW-2000-WIFI
• Fixing Kit - DW-2000-FIX
• Installation Guide - DW-2000-IG
