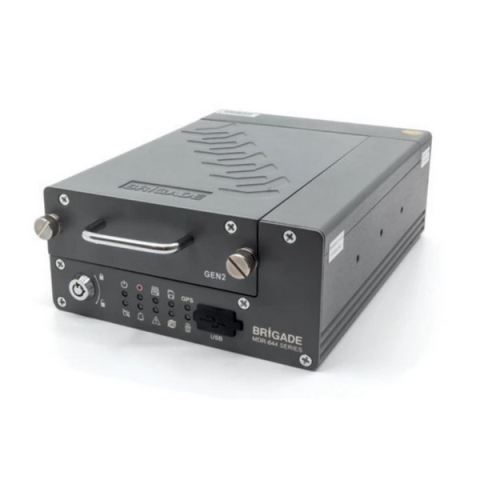

Brigade Electronics 6575 MDR-644 Mobile Digital Recorder - 4 Analogue Channels 4 IP Channels 500GB SSD 64GB SD

Why Invest in Mobile Digital Recorders (MDR)?

Protecting your driver. Providing your witness. Incidents involving vehicles can be time-consuming and costly to resolve. A lack of solid evidence often means that companies will automatically accept liability. However, these easy settlements have led to an increase in cases against operators who are considered soft targets. False claims, crash-for-cash, and shrinkage are now costing businesses millions each year. By capturing footage from vehicle-mounted cameras, Brigade's MDR digital video recorders offer the ideal solution, providing accurate eye-witness and irrefutable evidence in the event of an incident.

MDR range of digital video recorders offers high-quality recording functionality so that you can rest assured that you and your drivers are protected. Moreover, the use of mobile digital recorders helps in improving driver behavior through constant monitoring, thereby reducing the likelihood of incidents and enhancing overall road safety. They also help in reducing insurance premiums by providing clear evidence that can exonerate drivers from false accusations.

Investing in Brigade's mobile digital recorders means equipping your fleet with the best tools for safety, security, and efficiency. With these systems in place, you can mitigate risks, avoid fraudulent claims, and ensure that your operations run smoothly and cost-effectively. In a world where every second and every decision counts, having a reliable mobile digital recorder is not just an advantage - it is a necessity for any business relying on commercial vehicle video recording.

• Provides protection - Provides protection for drivers who may be wrongly accused
• Driver Best Practice - Encourages driver best practice, so less vehicle damage and accidents
• Vandalism deterrent - A good deterrent for theft and vandalism
• Peace of mind - Peace of mind for passengers and drivers

Features:

• MDR-Dashboard 6.0 (full-featured software) has the following functions: Real-time preview, Multi-vehicle monitoring, playback of server and local video data, downloading data, evidence management, auto-download scheduling, user data management and an alarm centre.
• On-screen Display Graphical User Interface
• MDR control using USB Mouse and PC via browser (Ethernet)
• Video compression supports H.264 and H.265
• MDR-Player 6.0 is a simplified player to view clippings and directories
• Internal G-Sensor and Built-in Buzzer
• GPS for location, monitoring and tracking on playback
• Mirror or Alarm Recording onto SD card
• Lockable and removable Mobile Caddy Unit (MCU). Supports encrypting feature for recorded data in MCU and SD card
• Caddy Unit directly pluggable to PC via USB-B port (USB 3.0)
• Various Pre and Post Recording settings
• Recording Modes: Normal, Alarm and Timer
• Multi-level GDPR compliant password protected access (Administrator; User)
• 8x Trigger Inputs, 2x Trigger Outputs and 1x 12V Power Output
• CAN data support for up to 14x messages of J1939 to process, record, and view on MDR-Dashboard 6.0
• Built-in heater for main storage media
• Diagnostic LED Status Panel
• USB-A port on front panel for upgrades, configuration and exporting data
• Network Protocols Supported: TCP/IP, UDP, DHCP, TFTP, FTP, HTTP/ HTTPS, SNTP, ONVIF, RTSP

Environmental Specifications:

• Shock Rating: 51G
• Vibration Rating: 3.1G
• Operating Relative Humidity: 10% to 90%
• IP Rating: IP30
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C

Technical Specifications:

• Operating Voltage: 8.5 - 32Vdc
• Max Current Consumption: ≤5.5A at 12Vdc
• Max Inrush Current: 6.1A at 12Vdc and 2.7A at 24Vdc
• Power Consumption: ≤60 Watts at 12Vdc
• TV System: PAL / NTSC / AHD
• Video Input: 4x channels for analogue cameras, 4x channels for IP cameras, via PON Switch addition 4x IP cameras
• Audio Input: up to 12x camera microphones
• Video Output: 1x Select Connector (female)
• Audio Output: 1x channel
• Video Input/Output: 1.0Vp-p / 75Ω
• Video Compression: H.264 / H.265
• Audio Compression: ADPCM, G711A, G711U
• Installation Direction: Internal HDD anti-vibration mount allows any mounting direction.
• Housing Material: Extruded aluminium, gunmetal gray
• Dimensions (without Cables): 190mm (W) x 223mm (D) x 82mm (H)
• Power-up Time to Rec.: 60 seconds
• Display Split: Single, Quad or 9-Split
• Image Frame Rates: 1-25fps or 1-30fps camera dependent
• Image Resolution:
  • PAL: WD1 (960x576), D1 (704x576), WHD1 (960x288), HD1 (704x288), WCIF (480x288), CIF (352x288)
  • NTSC: WD1 (960x480), D1 (704x480), WHD1 (960x240), HD1 (704x240), WCIF (480x240), CIF (352x240)
  • AHD: HD (1280x720), FULL HD (1920x1080)
• Recording Quality Setting: 1 to 8 (1 is the highest)
• Recording Duration (500GB, Quality 2, 20fps):
  • Typical with H.264 215 hrs. (Res D1); 69 hrs. (Res 720p)
  • Typical with H.265 331 hrs. (Res D1); 98 hrs. (Res 720p)
• Storage: SD card 64GB

Approved Standards:

• UKCA - (Radio Equipment Regulation S.I. 2017/1206, RoHS)
• FCC - (System: 47 CFR Part 15 Subpart B & Modular: Wi-Fi: 47 CFR Part 15C,15E, Mobile Network: 47 CFR Part 22H, Part 24E, Part 27 & Part 90)
• IC - (System: ICES-003 Issue 7 & Modular : Wi-Fi: RSS 247 Issue 2, Mobile Network: RSS-102, RSS-130, RSS-132, RSS-133, RSS-139, RSS-196)
• REACH

Package Contents:

• 1 x MDR-644-0.5-SSD Mobile Digital Recorder
• 1 x MDR-MOUSE-01 MDR Wired Mouse
• 1 x MDR-IO-02 Input / Output Cable
• 1 x MDR-PWR-01 Power Cable
• 1 x MDR-ANT-GPS-03 GPS Antenna
• 1 x MDR-USB-B-02 USB A to B Cable (3.0)
• 1 x MDR-KEY-01 Security Key
• 1 x MDR-BKT-01 Brackets
• 1 x MDR-BKT-FIX-01 Bracket Fixings
• 1 x MDR-600-SIG Short Installation Guide
