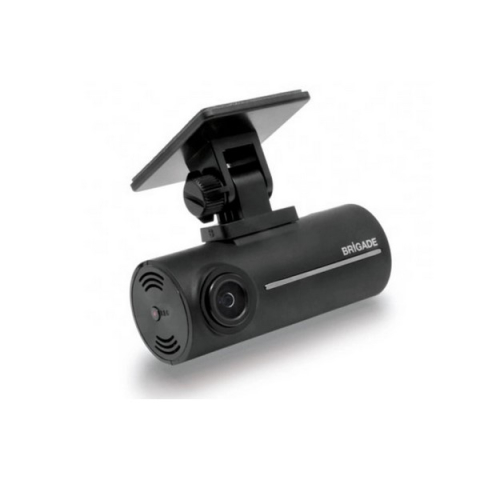

Brigade Electronics 6561 Stand Alone Dashcam - 1080p Audio GPS 32GB SD and 2nd Input for USA

Incidents involving commercial vehicles are becoming more frequent with insurance claims being time-consuming issues for both drivers and fleet managers. A lack of solid evidence can often mean companies automatically accept liability with false claims, crash-for-cash and shrinkage now costing businesses millions each year.

Brigade's Dashcams - compact, combined camera and recording systems - provide evidence in the case of vehicle incidents. The palm-sized devices are easily attached to the windshield, enabling recording of the road ahead.

All of Brigade's Dashcams include a GPS antenna which provides a variety of data. Details such as speed, time of an incident, the severity of impact, a precise location and route identification are all able to be obtained when recovering footage. Brigade's Dashcam has been designed with a supercapacitor that automatically provides backup power in the event of power being disconnected. This ensures no data is lost and recordings are safely stored.

Features:

• 1080p High definition video capture
• Wide-angle camera lens 140°
• Wide dynamic range for improved detail in shadow and highlights
• Up to 4 hours recording on supplied micro SD card (supports up to 64Gb)
• Continuous recording with automatic overwriting of oldest data
• Audio
• External GPS receiver
• FAT (File Allocation Table) system eliminates the need for manual formatting of video files
• 4 recording modes:
  • Continuous - Records in 1min segments
  • Incident - Records 10 seconds before and after an incident
  • Manual - Records 10 seconds before and 50 seconds after manually starting recording
  • Parking mode - Requires hard wiring
• Adjustable camera (rear-view camera only)
• Advanced Video Clear Technology

Environmental Specifications:

• Operating Temperature: 14 to 140°F / -10 to 60°C
• Storage Temperature: -4 to 158°F / -20 to 70°C

Technical Specifications:

• Memory - microSD memory card
• Camera sensor - 2.12MP Sony Exmor CMOS 1080P
• Angle of view - Approximately 135°(diagonally)
• Video - FHD (1920 x 1080) / H.264 / file extension: MP4
• Frame rate - Maximum 30 fps
• Audio - PCM (pulse code modulation)
• Acceleration Sensor - Triaxial acceleration sensor (3D, +/-3G)
• 2nd camera - V-IN port
• GPS - External GPS receiver
• Power input - DC 12 /24V supported
• Power consumption - 2ch: 3.25W / 1ch: 2.2W (mean)
• Auxilliary power unit - Super capacitor
• LED Indicator - Status LED
• Key - REC key
• Alarm - Bulit-in speakers

Approved Standards:

• UKCA
• CE
• FCC
• IC

Package Contents:

• 1 x DC-102
• 1 x 32GB MicroSD card and SD Adaptor (UK/USA/CAN)
• 1 x GPS Sensor
• 1 x 3m Hardwire cable
• 1 x Windscreen Mount
• 1 x 3M Sticky pad
• 3 x 3M cable clips
• 1 x Quick Start Guide
