Brigade Electronics 6153 Sidescan Predict Sensor System (12-24VDC)

Why Sidescan^® Predict?

HGVs pose a disproportionate risk to both pedestrians and cyclists with collisions involving a large vehicle far more likely to prove fatal than those involving a car. Many collisions between cyclists and HGVs occur because the driver has limited direct vision (the ability to see what is outside their cab without using indirect means of mirrors or cameras).

Detection systems have helped make both drivers and vulnerable road users aware of the proximity of one another, however, these systems only alert the driver to the presence of an object, even if there is no danger of a collision. This can result in false alarms, leading the driver to become habituated to the warning and potentially rendering the detection system ineffective.

What is Sidescan^® Predict?

Brigade's Sidescan^® Predict is the next generation of side-detection sensor system, designed for collision avoidance between road vehicles, objects and vulnerable road users. Utilising ultrasonic technology, this intelligent system predicts if a collision is likely to occur. By analysing data such as speed, direction and acceleration of both the vehicle and detected object, and differentiating between static and moving objects, the Sidescan^® Predict algorithm assesses the risk and calculates the likelihood of an impact.

Sidescan^® Predict instantly alerts the driver to potential dangers via a multi-stage in-cab visual and audible warning system, according to the urgency of the situation - therefore minimising the number of audible alerts and reducing false alarms.

The Benefits of Sidescan^®Predict:

• Sensor & Mount Fittings - Reduced false alarms and driver habituation
• Visual and Audio Display - Ultrasonic proximity sensors minimise both vehicle damage and collisions with pedestrians, cyclists or objects
• Algorithm ECU - Conforms to side blind-spot legislations
• Retrofit - Sidescan®Predict is suitable for most rigid body vehicles

Designed for rigid-bodied vehicles, Sidescan^®Predict comprises of six ultrasonic sensors fitted along the side of the vehicle to increase safety when turning or low speed manoeuvring. Each sensor has a maximum detection radius of 2.5 metres.

Features:

• Audio alerts for predicted collisions and dangerous scenarios
• Visual alerts for moving objects
• Vehicle motion monitoring to remove unnecessary alarms
• Buzzer display with power / fault indicator capable of visual and audio warnings
• Extra-wide sensor detection pattern for full blind spot coverage
• Dedicated configuration tool and software
• ECU configuration and diagnostics via USB
• Indicator-activated external turn alarms can be triggered via switched ground output triggers without additional hardware
• Indicator and vehicle speed acquisition without additional hardware
• System automatically shuts off above 18.6 mph / 30 kph

Environmental Specifications:

• Mechanical Shock Rating: 51G (All 3 axis - 6 directions)
• Mechanical Vibration Rating: 8.5G (All 3 axis - 32 hrs each)
• Buzzer IP Rating: IP30
• Algorithm ECU IP Rating: IP30
• Sensor Subsystem IP Rating: IP69K
• Operating Temperature: -30°C to +70°C
• Storage Temperature: -40°C to +85°C

Technical Specifications:

• Operating Voltage: 10 - 32 Vdc
• Input Current (with 16 sensors): 230 mA at 12 V
• Power Consumption: ≤3 W at 12 V
• Detection Range: 0 - 2.5 m
• Response Time: <100 ms
• Start-up Time: <3 seconds
• Speed Signal: Tachograph B7
• ECU Casing Material: ABS Plastic
• Sensor Casing Material: Metal
• Color: Black
• Sensor Mounting Height: 0.6 - 1.4 m
• Algorithm ECU Dimensions: 193(L) x 95(W) x 35(H) mm
• Ultrasonic ECU Dimensions: 117(L) x 69(W) x 27(H) mm
• Buzzer Dimensions: 92(L) x 52(W) x 21(H) mm

Configuration Software Specifications:

• Operating System: Windows 10
• Minimum Resolution: 1280 x 960

Approved Standards:

• CE - (EN 61000-6-3: 2007+A1:2011/ EN IEC 61000-6-2:2019)
• FCC - (47 CFR Part 15 Subpart B)
• IC - (ICES-003:2020, Issue 7)
• ‘E' Mark - (ECE Regulation 10 Rev. 05)
• Elements of ISO 16750:2012
• RoHS
• WEEE

Package Contents:

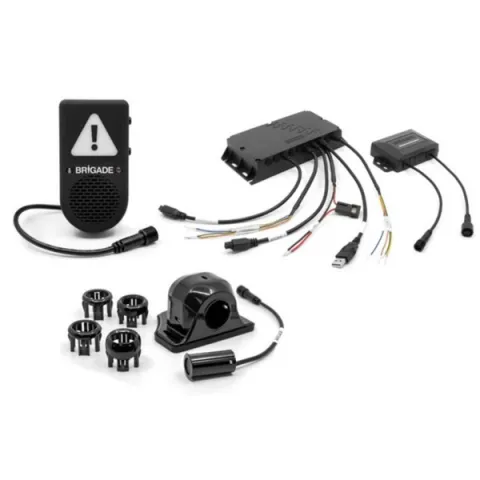

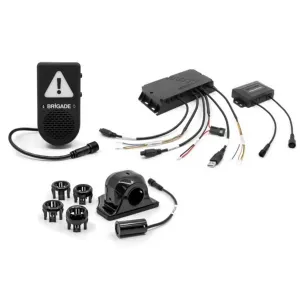

• 1 x SSP-6000KT - SideScan®Predict Sub Assembly Kit (UDS ECU, 6 sensors and cabling)
• 1 x SSP-1000-AI-ECU - Sidescan®Predict Algorithm ECU
• 1 x SSP-1000-DPW - Sidescan®Predict Display (Warning Icon)
• 1 x GENERIC-UG-SW-QG - Generic User Guide and Software Link Card
• 1 x SSP-6000W-DI-QG - Sidescan®Predict SSP-6000W Driver Information Sheet
