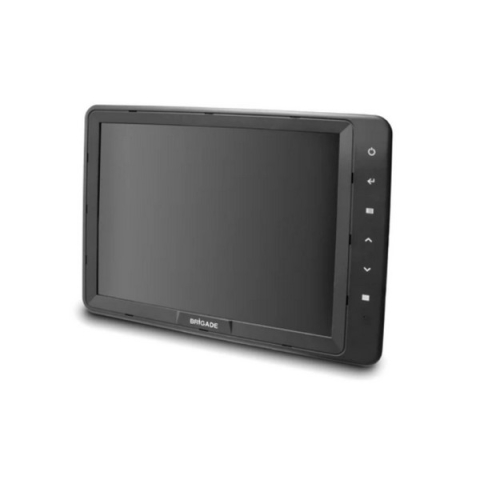

Brigade Electronics 6057A Select 10.4" AHD LCD QUAD Monitor 4 Inputs Audio with Shutter Camera Support

Vehicle camera systems are a vast improvement on the many mirrors needed to view vehicle blind spots. Mirrors themselves create further blind spots and ‘information overload' for drivers who don't know where to look first, with knocked or broken mirrors creating further visibility issues. Backeye^® monitors allow multiple camera images to be viewed on a single monitor with dedicated views triggered by, for example, reverse gear. Cameras provide a wider angle of view than mirrors and are less likely to be damaged, whilst built-in LED's offer superior visibility in low light conditions.

Vehicle CCTV systems are used in a wide range of on- and off-road applications to meet a host of health and safety and legislative requirements, including R46. They can eliminate blind spots to prevent costly vehicle damage and, more importantly, save lives.

Brigade Monitors

In-cab monitors are a vital part of the safety process, giving the driver essential information about the vehicle's surroundings. Brigade's 10.4" LCD monitors are suitable for larger, heavy-duty machines or where permanent multiple images are required. With single-to-multiple camera inputs and auto-triggers, Brigade monitors will work on any application in any industry, regardless of the amount of camera views connected.

The Benefits of using Monitor Systems:

• Eliminates Blind Spots -  Calibrated cameras capture all of the surrounding areas including the blind spots of the vehicle or machine
• Real-time Views - Live pictures of the vehicle or machine's surrounding area fed to the monitor without latency (time lag)
• Ultra-wide Cameras - One camera covers one full side of the vehicle with a viewing angle of over 180°
• Recordable - Record a high definition image to an external MDR of all the individual camera feeds

Features:

• AHD and CVBS compatible with automatic signal detection
• High-definition, high contrast, wide viewing angle digital LCD with LED backlight.
• Quad view monitor with multiple views.
• Configurable view options with double / triple / quad / 360 / ‘H' & Picture In Picture support.
• Configurable split option for additional camera usage with Backeye 360 systems.
• Scalable and Moveable Picture In Picture options.
• Configurable trigger input functions.
• Low Reflection TFT LCD (Anti Glare).
• Integrated ambient light sensor for image dimming.
• Illuminated touch keypad.
• Keypad disable/lock Via OSD Menu.
• Integrated large speaker.
• 4 x M5x6 VESA standard (75x75mm) mounting.
• 10 x On Screen Display (OSD) languages: (English, French, German, Spanish, Turkish, Italian, Dutch, Portuguese, Russian, Polish)
• Configurable trigger off delay (0-20 sec.)
• Configurable Auto Scan delay (0-20 sec.).
• 2 x variations of electronic on screen markers.
• Compatible with Remote Control VBV-7X0FM-RC.

Picture Quality:

• LED backlighting (gives 20,000 hours life)
• Anti-glare screen
• Resolution: 1024 x 600
• Contrast ratio: 700:1
• Brightness: 500cd/m2
• Viewing angles: Side 85° x Top 85° x Bottom 85°

Power:

• Power consumption: 10 Watts
• Current: 0.8 Amps

Environmental Specifications:

• Shock Rating: 51G
• Vibration Rating: 3G (All 3 axis each 32hr random)
• Connector IP Rating: IP40
• Monitor IP Rating: IP30
• Operating Temperature: -20° to +70°C
• Storage Temperature: -30° to +80°C

Approved Standards:

• E-Mark - (UNECE Reg. 10 Rev. 06)
• CE - (EN 61000-6-2:2019, EN 61000-6-3:2021 + A1:2011 + AC:2012)
• UKCA - (EN 61000-6-2:2019 / EN 61000-6-3:2021+A1:2011 + AC:2012)
• FCC - (47 CFR Part 15 Subpart B)
• Industry Canada - (ICES-003 Issue 7)
• Elements of ISO 16750
• Ingress Protection - (ISO 20653:2013)

Package Includes:

• 1x VBV-7104HFM-M - Monitor
• 1x VBV-7XXHFM-CA - Cable Adapter
• 1x VBV-7104FM-SS - Sunshield
• 1x BMM-023 - U Bracket
• 1x VBV-7104HFM-IG - Installation Guide
