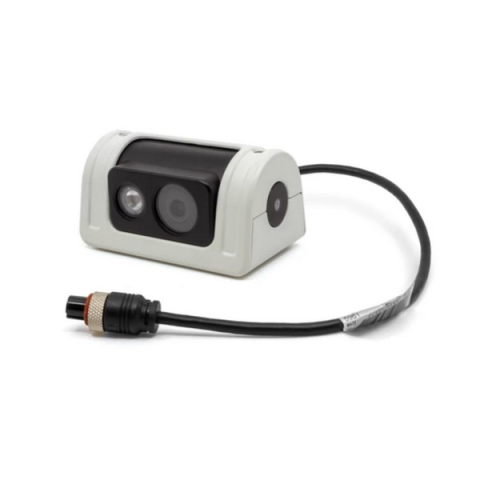

Brigade Electronics 5936 IP Camera - Surface Mount IP67 (1080p) 850 TV Lines with Fixing Kit

Why Connect IP Cameras to a Vehicle?

Vehicle collisions and incidents can be time-consuming and costly to resolve so having recorded footage where there are conflicting reports of events or by being able to prove a staged accident is invaluable to any company.

Connecting Internet Protocol (IP) Cameras and a Network Expansion Module to a vehicle in addition to standard analogue cameras, increases the number of channels available to a Mobile Digital Recorder (MDR): Up to 6 cameras can be connected to the 4-channel MDR and up to 16 cameras to the 8-channel MDR.

How do IP Cameras for Vehicles Work?

An Internet Protocol (IP) Camera is a high-definition digital camera with its own IP address. Instead of transmitting video over a video cable to a monitor or MDR, the IP camera transmits digital video to the MDR over a data connection (ethernet cable) where the images are saved to the HDD memory.

Brigade Expansion Modules use Power Over Network (PON) Switch technology to expand the channel capability of the MDR by transmitting digital video images from IP cameras over the top of existing analogue video cables/signals. The MDR on-screen display allows easy camera set up without need for specific IP camera knowledge.

This IP67 Surface Mount Camera has been designed to be vertically mounted internally or externally to monitor passengers, loads, tail lifts etc.

Features:

• High-definition picture quality
• Vehicle body mounted, side view camera
• Built-in G-sensor for automatic image orientation
• Night vision via 1x high power infrared LED enabled by integrated day / night sensor
• IR can be auto-turned on when camera temperature is lower than 0 Celsius to heat the camera up
• Camera View normal, mirror / flip view settings via MDR OSD or IP camera web interface
• Built-in web server supports web browser access
• Fast Setup feature available in MDR 500 Series to auto-assign IP address for IP cameras
• VBV Type female connector (6-pin)
• Back Light Compensation
• Automatic White Balance

Environmental Specifications:

• Operating Temperature: -40° to +70°C
• Storage Temperature: -40° to +85°C
• Camera IP Rating: IP67
• Vibration Rating: 16.6G
• Shocking Rating: 51G

Technical Specifications:

• Operating Voltage: 12 Vdc ± 2 Vdc
• Current Consumption: 133 mA at 12 Vdc (IR off) 360 mA at 12Vdc (IR on)
• Viewing Angle: 84° (H), 46° (V), 103° (D)
• Lens Focal Length: 4mm
• Picture Elements: 1920(H) x 1080(V)
• Visual Resolution: 850 TV Lines
• Required Illumination: 0 Lux (IR)
• Imaging Device: CMOS
• Video Output Signal: H.264 or H.265
• Network Protocol: MDR5, ONVIF, TCP/IP, HTTP, DHCP, NTP, FTP
• Overall Dimensions: 95.6mm (W) x 51.8mm (H) x 62.1mm (D)
• Assembled Weight: 354 Grams
• Housing Material: Cast Aluminium / PC
• Finish: Black / White

Approved Standards:

• CE - (EN55032:2015/AC:2016, EN55024:2017)
• FCC - (47 CFR Part 15 Subpart B)
• IC - (ICES-003:2016 (Issue 6))
• E-Mark - (UNECE Regulation 10 Rev. 5)
• RoHS2
• REACH
• WEEE

Package Contents:

• 1x IP-1100C-C IP Camera
• 1x IP-1100C-FIX Fixing Kit
• 1x IP-1100C-IG Installation Guide
