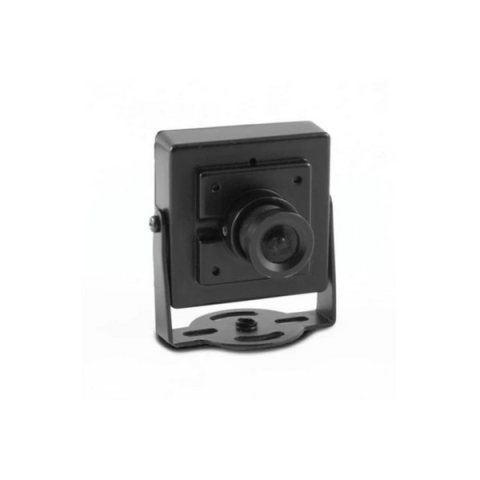

Brigade Electronics 5719 Select Mini Camera (Internal Use) 720p / 30fps (AHD)

Reduce Blind Spots and Prevent Collisions

The size of commercial vehicles and machines mean vehicle blind spots are a major factor in collisions across all industries.

Operator positions, bodywork, bulkheads and absent rear windows create further restrictions and can greatly limit driver visibility, making collisions even more likely. The significant financial cost of vehicle and property damage is magnified by associated costs such as downtime but even greater, are the corporate and emotional costs when there is personal injury.

Brigade's camera monitor systems enable drivers and operators to manoeuvre and drive safely. Vehicle-mounted CCTV cameras can help the driver to see blind spots and provide a reversing aid by delivering a live feed on the monitor of everything in the camera view, including people or obstacles.

Features:

• High quality ON-Semiconductor image sensor
• High quality Nextchip image signal processor
• Compact size
• Automatic White Balance
• Back Light Compensation
• Fixed IRIS
• VBV Type Female Connector

Environmental Specifications:

• Shock Rating: 51 G
• Vibration Rating: 10 G
• Camera IP Rating: IP30
• Connector IP Rating: IP67
• Operating Temperature: -30° to +85°C
• Storage Temperature: -40° to +85°C

Technical Specifications:

• Operating Voltage: 12 Vdc ± 2 Vdc
• Current Consumption: ≤ 55mA at 12 Vdc
• Power Consumption: ≤ 1 Watts at 12 Vdc
• Imaging Devices: CMOS - 1/3" ON-Semi ISP - Nextchip
• TV System: AHD 1.0 (720p-30fps)
• Picture Elements: 1280(H) x 960(V)
• Horizontal Visual Resolution: 900 TV Lines
• Lens Focal Length: 4.04mm
• Signal to Noise Ratio: Max. 44dB
• Required Illumination: 0.5 Lux
• Viewing Angle: 68°(H), 38°(V), 80°(D)
• Installed Weight: Approx. 80 Grams
• Video Output: 1 Vp-p / 75Ω
• Length of Cable: 375 ± 50mm
• Overall Dimensions: 43mm (W) x 37.5mm (D) x 45mm (H)
• Housing Material: Aluminium Alloy
• Camera View: Configurable - Mirror/Normal
• Finish: Black Paint

Approved Standards:

• CE - (EN 55032:2015 EN 55024:2010 + A1:2015)
• FCC - (47 CFR Part 15 Subpart B)
• IC - (ICES -003 Issue 6)
• ‘E' Mark - (ECE Regulation 10 Rev 05)
• RoHS
• WEEE

Package Includes:

• 1 x DMC-1031-C Camera
• 1 x DMC-1031-BKT - Bracket
• 1 x DMC-1031-FIX - Fixing Kit
• 1 x DMC-1031-IG - Installation Guide
