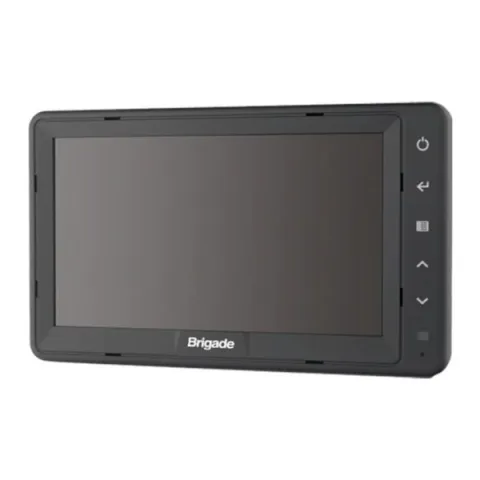

Brigade Electronics 5611A Select 7" LCD Monitor High Resolution AHD Compatible 3 Inputs Audio (Resolution 1024 x 600) with Shutter Camera Support

Vehicle camera systems are a vast improvement on the many mirrors needed to view vehicle blind spots. Mirrors themselves create further blind spots and ‘information overload' for drivers who don't know where to look first, with knocked or broken mirrors creating further visibility issues. Backeye^® monitors allow multiple camera images to be viewed on a single monitor with dedicated views triggered by, for example, reverse gear. Cameras provide a wider angle of view than mirrors and are less likely to be damaged, whilst built-in LED's offer superior visibility in low light conditions.

Vehicle CCTV systems are used in a wide range of on- and off-road applications to meet a host of health and safety and legislative requirements, including R46. They can eliminate blind spots to prevent costly vehicle damage and, more importantly, save lives.

Brigade Monitors

In-cab monitors are a vital part of the safety process, giving the driver essential information about the vehicle's surroundings. With single-to-multiple camera inputs and auto-triggers, Brigade monitors will work on any application in any industry, regardless of the amount of camera views connected.

The Benefits of using Monitor Systems:

• Eliminates Blind Spots -  Calibrated cameras capture all of the surrounding areas including the blind spots of the vehicle or machine
• Real-time Views - Live pictures of the vehicle or machine's surrounding area fed to the monitor without latency (time lag)
• Ultra-wide Cameras - One camera covers one full side of the vehicle with a viewing angle of over 180°
• Recordable - Record a high definition image to an external MDR of all the individual camera feeds

Features:

• AHD and CVBS compatible with automatic signal detection (see list of all supported TV systems)
• High-definition, high-contrast, wide viewing angle digital LCD with LED backlight
• Low reflection TFT LCD (Anti Glare Coating)
• Integrated light sensor for backlight dimming
• Illuminated touch keypad
• Keypad disable/lock via OSD menu
• Integrated large speaker
• 10 x On Screen Display (OSD) languages: (English, French, German, Spanish, Turkish, Italian, Dutch, Portuguese, Russian, Polish)
• Configurable trigger off delay (0-20 sec.)
• Configurable trigger input functions
• Configurable auto scan delay (0-20 sec.)
• 2 variations of digital on screen markers
• Compatible with Remote Control VBV-7X0DM-RC
• 5-pin shutter camera support via adapter cable AC-035

Picture Quality:

• LED backlighting (gives 20,000 hours life)
• Anti-glare screen
• Resolution: 1024 x 600
• Contrast ratio: 700:1
• Brightness: 500cd/m2
• Viewing angles: Side 85° x Top 85° x Bottom 85°

Power:

• Power consumption: 10 Watts
• Current: 0.8 Amps

Environmental Specifications:

• Shock Rating: 51 G (All 3 axis - 6 directions)
• Vibration Rating: 3 G (All 3 axis each 32hr random)
• Connector IP Rating: IP40
• Monitor IP Rating: IP30
• Operating Temperature: -30°C to +70°C
• Storage Temperature: -40°C to +85°C

Approved Standards:

• CE - (Electromagnetic Compatibility Directive 2014/30/EU, RoHS)
• UKCA (Electromagnetic Compatibility Regulations S.I. 2016/1091, RoHS)
• ‘E' Mark - (UNECE Regulation 10 Rev 06)
• FCC - (47 CFR Part 15 Subpart B)
• IC - (ICES-003:2016, Issue 7 Class B)
• Elements of ISO 16750
• REACH
• WEEE

Package Includes:

• 1x VBV-770HM-M - Monitor Only
• 1x VBV-770M-CA - Cable Adapter
• 1x VBV-770M-SS - Sunshield
• 1x VBV-770HM-IG - Installation Guide
• 1x BMM-015 - Short Arm Bracket
