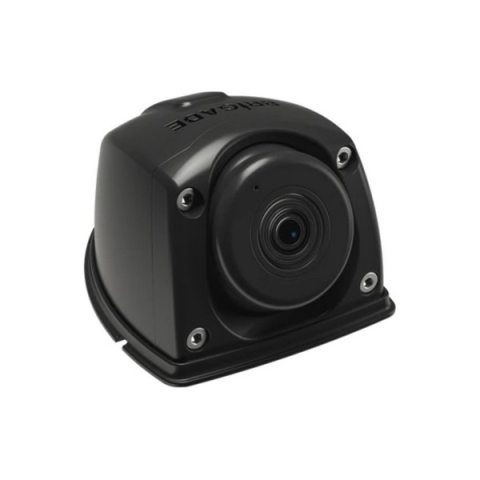

Brigade Electronics 5454 Select Compact Flush-mount Eyeball Camera AHD (Mirror Image) 25fps

Camera Monitor Systems

Brigade Van camera monitor systems enable drivers to maneuver and drive safely. Cameras can help the driver to see blind spots and offers a back up aid by delivering a live feed on the monitor of everything in the camera view, including people or obstacles. All cameras are compatible with Brigade Van recorders.

Features:

• High-definition 720p AHD 1.0 picture quality
• Fully adjustable ball position
• Night Vision via 5 x High Power Infrared LEDs enabled by integrated Day / Night sensor
• Integrated Microphone
• High Quality Sony CMOS & NextChip ISP
• Back Light Compensation
• Automatic White Balance
• Wide dynamic range
• Fixed IRIS
• VBV Type Female Connector
• Ball adjustment allows mounting on any flat surface

Environmental Specifications:

• Shock Rating: 51 G (All 3 Axis - 6 directions)
• Vibration Rating: 8.5 G (All 3 Axis - 32hrs each)
• Camera IP Rating: IP69K
• Connector IP Rating: IP67
• Operating Temperature: -30° to +70°C
• Storage Temperature: -40° to +85°C

Technical Specifications:

• Operating Voltage: 12 Vdc ± 2Vdc
• Current Consumption: ≤106mA at 14 Vdc
• Power Consumption: ≤1.5 Watts at 14 Vdc
• Imaging Devices: CMOS - 1/3" Sony
• TV System: AHD 1.0 (720p-25 fps)
• Visual Resolution: 600 TV Lines
• Picture elements: 1297(H) x 977(V)
• Lens Focal Length: 2.0mm
• Required Illumination: 0 Lux (IR LED ON)
• Illumination Area: Approx. 4.5m (L) x 3m (W)
• Ball rotation: ±180º
• Ball adjustment: Up 26°; Down 4°; Left / Right 4°
• Viewing Angle: 128° (H), 72° (V), 142° (D)
• Assembled Weight: 160 Grams
• Video Output: Approx. 1.7 Vp-p / 75Ω
• Length of Cable: 1000 ± 30mm
• Overall Dimensions: 57mm (W) x 70mm (D) x 42mm (H)
• Housing Material: Aluminium Alloy
• Camera View: Fixed - Mirror
• Finish: Black

Approved Standards:

• CE (EN 61000-6-1:2007 + A1:2011 + AC:2012 / EN 61000-6-3:2007 + AC:2005)
• FCC (47 CFR Part 15 Subpart B)
• Industry Canada (ICES-003)
• E-Mark (ECE Regulation 10 Rev 05)
• Ingress Protection (ISO 20653:2006)
• Salt Spray Corrosion (ISO 16750-4)
• RoHS
• WEEE

Package Includes:

• 1 x VBV-3000C-C - Camera Ball Only
• 1 x VBV-300C-RH - Rear Housing
• 1 x VBV-300C-FH - Front Housing
• 1 x VBV-300C-RM - Rubber Mat
• 1 x VBV-300C-FIX - Fixing Pack
• 1 x VBV-3000C-IG - Installation Guide
