Overview

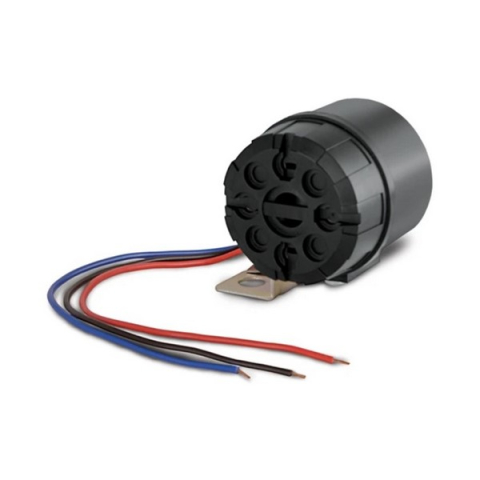

Tonal Reversing Alarm, Light Duty - 90dB (12-24V) with Deutsch Connector
Night Silent Tonal Reversing Alarm.
Features:
- Sound Level - 90dB
- with Deutsch Connector
- Blue wire connection mutes alarm when vehicle lights are on
- Frequency (KHz): 2.4
- Sounder unit: Piezo
- Single bolt fitting
- Current: Max 0.03 Amps
- 12-24Vdc
- IP68
- Size (WxHxD): 48 x 60 x 48mm
Durability & Standards:
- Mechanical vibration: 10G
- Operating temperature: -20 to +60°C
- CE marked
