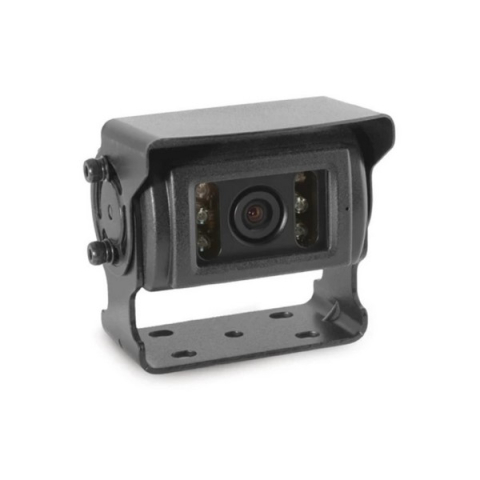

Brigade Electronics 5426A Elite Camera WDR Waterproof to IP69K - No Audio (NTSC) 12Vdc

Reduce Blind Spots and Prevent Collisions

The size of commercial vehicles and machines mean vehicle blind spots are a major factor in collisions across all industries.

Operator positions, bodywork, bulkheads and absent rear windows create further restrictions and can greatly limit driver visibility, making collisions even more likely. The significant financial cost of vehicle and property damage is magnified by associated costs such as downtime but even greater, are the corporate and emotional costs when there is personal injury.

Brigade's camera monitor systems enable drivers and operators to manoeuvre and drive safely. Vehicle-mounted CCTV cameras can help the driver to see blind spots and provide a reversing aid by delivering a live feed on the monitor of everything in the camera view, including people or obstacles.

Features:

• Wide Dynamic Range
• Automatic White Balance
• Fixed IRIS - Aperture F2.5
• 5 x High Power Infrared LEDs
• Integrated Day/Night Sensor
• Integrated Heater
• BE Type Connector
• High Performance Sony CMOS Chip
• Waterproof

Power:

• Power consumption: 4.5 Watts
• Current: 0.33 Amps

Environmental Specifications:

• Shock Rating: 51G (3 axis, 6 directions)
• Vibration Rating: 8.5G (3 axis, random frequency)
• Connector IP Rating: IP67
• Camera IP Rating: IP68, IP69K
• Operating Temperature: -40° to +85 °C
• Storage Temperature: -40° to +85°C

Approved Standards:

• CE (EN 61000-6-1:2007 + A1:2011 + AC:2012 / EN 61000-6-3:2007 + AC:2005)
• FCC (47 CFR Part 15 Subpart B)
• Industry Canada (ICES-003)
• E-Mark (ECE Regulation 10 Rev 05)
• EMC for Earth Moving Machinery (ISO 13766:2006)
• EMC for Construction Equipment (EN 13309:2010)
• Ingress Protection (ISO 20653:2006)
• Salt Spray Corrosion (ISO 16750-4)
• RoHS
• WEEE

Package Includes:

• 1 x BE-891C Camera
• 1 x Bracket
• 1 x Sunshield
• 1 x Fixing Pack
• 1 x Instruction Guide
