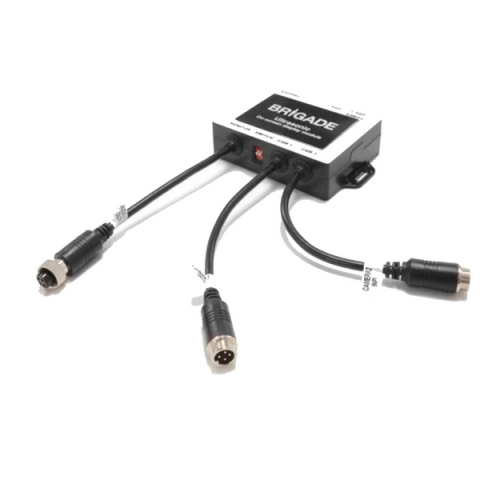

Brigade Electronics 5347 UDS On-Screen Display Module - 2 UDS Inputs 2 Camera Inputs (NTSC)

Ultrasonic Detection On-Screen Display Module (OSD)

Sensor data and camera image combined.

Brigade's ultrasonic proximity sensors minimize both vehicle damage and collisions with pedestrians, cyclists or objects. Perfect for road-going commercial vehicles operating in confined spaces or maneuvering at low speed.

Working in conjunction with a Backeye^® camera monitor system and up to two ultrasonic detection systems, the on-screen display module warns the driver of obstacles close to the vehicle by overlaying 3-stage audible and visual ultrasonic data onto the camera image on the monitor.

• Integration of Brigade's ultrasonic obstacle detection systems and Backeye^® camera monitor systems
• Ultrasonic detection warnings overlaid onto the camera image on in-cab monitor.
• Reduced driver stress and distractions as all information is in one view.

Features:

• Overlay of vehicle icon and ultrasonic proximity detection onto a video image from a camera or black background without a video signal present.
• Trigger signals control which video/audio input channel signal is displayed with integrated 3 second off delay for use with indicators.
• Depending on which side of the vehicle SideScan is installed the matching vehicle icon version can be selected, therefore also the vehicle icon swaps sides.
• UDS detection audible warning signal overlaid onto the audio signal from the camera.
• Faults of the UDS sensor systems are displayed with the overlay for proximity detection graphics.
• Depending on the used UDS sensor systems, the overlay for the proximity detection graphics location can be configured via DIP switches on the ECU.
• Compatible UDS sensor systems:
  • SS-4x00W - Brigade SideScan Systems
  • BS-4000W - Brigade BackScan Systems
  • FS-4000 - Brigade FrontScan Systems

Environmental Specifications:

• Shock Rating: 10G
• Vibration Rating: 5G
• IP Rating: IP30
• Operating Temperature: -30°C to +70°C
• Storage Temperature: -40°C to +85°C

Technical Specifications:

• Operating Voltage: 12 / 24 Vdc
• Current Consumption: ≤ 140mA at 12Vdc
• Power Consumption: ≤ 1.68W at 12Vdc
• TV System: For NTSC Systems
• No. of Triggers Inputs: 2
• No. of Camera Inputs: 2 x 4 pin VBV Connector
• No. of Audio/Video Output: 1 x 4 pin VBV Connector
• No. of UDS Inputs: 2 x 3 pin UDS Connector
• No. of UDS Outputs: 2 x 3 pin UDS Connector
• Overall Dimensions: (Without Cables) 73.5 mm (W) x 118 mm (D) x 27.5 mm (H)
• Installed Weight: Approx. 400 grams
• Video Input: 1.0 Vp-p / 75Ω
• Video Output: 1.0 Vp-p / 75Ω
• Power Cable Thickness: 22 AWG
• Trigger Cable Thickness: 24 AWG
• Housing Material: Black ABS Plastic
• Length of Cable :
  • Power Cable: 1500 ± 100mm
  • Splitter Cable: 180 ± 30mm
  • Trigger Cable: 1500 ± 50mm
  • Camera Inputs: 150 ± 20mm
  • Video Output: 150 ± 20mm

Approved Standards:

• CE - (EN 61000-6-2:2005 + AC:2005) / (EN 61000-6-3:2007 + A1:2011 + AC:2012)
• FCC - (47 CFR Part 15 Subpart B)
• IC - (ICES -003 Issue 6)
• ‘E' Mark - (ECE Regulation 10 Rev 05)
• Ingress Protection - (ISO 20653: 2010)
• RoHS
• WEEE

Package Contents:

• 1 x UDS-OSD21-ECU for NTSC Systems
• 1x UDS-CBL001 - Power Cable
• 1x UDS-CBL002 - Splitter Cable
• 1x UDS-CBL003 - Trigger Cable
• 1x UDS-OSD-IG - Installation Guide
