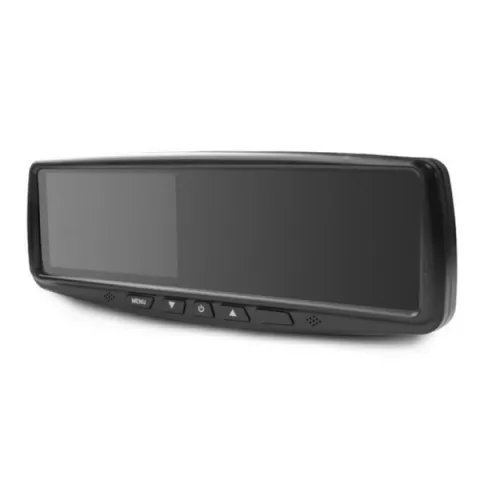

Brigade Electronics 5323 Select 4.3" Digital Mirror Monitor 2 Input (Resolution 480 x 272)

Vehicle camera systems are a vast improvement on the many mirrors needed to view vehicle blind spots. Mirrors themselves create further blind spots and ‘information overload' for drivers who don't know where to look first, with knocked or broken mirrors creating further visibility issues. Backeye^® monitors allow multiple camera images to be viewed on a single monitor with dedicated views triggered by, for example, reverse gear. Cameras provide a wider angle of view than mirrors and are less likely to be damaged, whilst built-in LED's offer superior visibility in low light conditions.

Vehicle CCTV systems are used in a wide range of on- and off-road applications to meet a host of health and safety and legislative requirements, including R46. They can eliminate blind spots to prevent costly vehicle damage and, more importantly, save lives.

Brigade Monitors

In-cab monitors are a vital part of the safety process, giving the driver essential information about the vehicle's surroundings. Brigade's compact 4.3" screen LCD monitors are suitable for smaller commercial vehicles or where cab space is limited. With single-to-multiple camera inputs and auto-triggers, Brigade monitors will work on any application in any industry, regardless of the amount of camera views connected.

The Benefits of using Monitor Systems:

• Eliminates Blind Spots -  Calibrated cameras capture all of the surrounding areas including the blind spots of the vehicle or machine
• Real-time Views - Live pictures of the vehicle or machine's surrounding area fed to the monitor without latency (time lag)
• Ultra-wide Cameras - One camera covers one full side of the vehicle with a viewing angle of over 180°
• Recordable - Record a high definition image to an external MDR of all the individual camera feeds

Features:

• High quality mirror (monitor invisible when off)
• High quality digital LCD Panel with LED backlight
• Integrated light sensor for backlight dimming
• On Screen Display Menu (OSD)
• Automatic detection of PAL or NTSC signal
• Illuminated keypad
• On-screen distance/parking marker
• 8 x On Screen Display (OSD) languages: (English, French, German, Spanish, Italian, Dutch, Portuguese, Russian)

Picture Quality:

• Resolution: 480 x 272
• Contrast ratio: 600:1
• Brightness: 1000cd/m2
• Viewing angles: Side 65° x Top 60° x Bottom 50°

Power:

• Power consumption: 6.6 Watts
• Current: 0.53 Amps

Environmental Specifications:

• Vibration Rating: 8.5G (3 axis, random frequency)
• Monitor IP Rating: IP30
• Operating Temperature: -20° to +70°C
• Storage Temperature: -30° to +80°C

Approved Standards:

• CE - (EN 61000-6-2:2005 + AC:2005 / EN 61000-6-3:2007 + A1:2011 + AC:2012)
• FCC - (47 CFR Part 15 Subpart B)
• Elements of ISO 16750
• RoHS
• WEEE

Package Includes:

• 1x Monitor
• 1x Cable Adapter
• 1x Windscreen Bracket & Fixing Pack
• 1x Installation Guide
