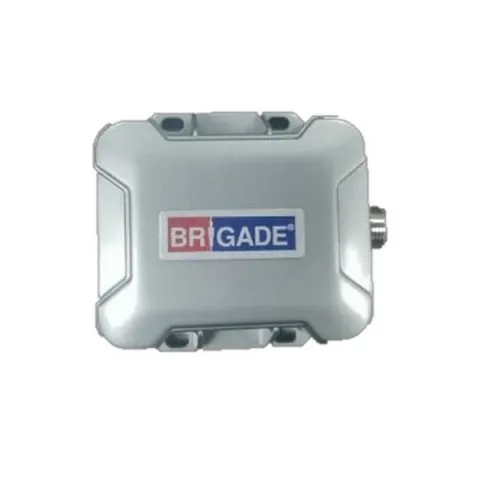

Brigade Electronics 4988 External G-Sensor and 2m Cable for Mobile Digital Recorders

MDR-GS-O2 - Mobile Digital Recorder External G-Sensor and 2m Cable

Features:

• Simple installation, recommended on a rigid vehicle body surface
• Quick calibration of G-Sensor using the remote control via MDR unit menu
• MDR-Dashboard Software displays G-Sensor data graphically, this enables you to analyse driver behaviour such as turns, braking, lane changing etc.

Environmental Specifications:

• Operating Temperature: -40° to +70 °C
• Storage Temperature: -40° to +85°C

Technical Specifications:

• Acceleration: +/-16G
• Orientation Sensors: 3 sensors in X, Y, Z directions
• Accelerometers: 3
• Installation Orientation: Any direction (MDR-Dashboard graphical data is dependent on G-Sensor orientation
• Housing Material: Aluminium
• Housing Finish Silver Paint
• Communication: RS485 (serial)
• Cable Length: 2 metres

Approved Standards:

• RoHS2
• WEEE

Package Contents:

• 1 x MDR-GS-02-G Second Generation External G-Sensor
• 1 x MDR-02GSC-02 Second Generation G-Sensor cable
