Brigade Electronics 4442 BS-4000W(AMP) Backscan Reversing Sensor System (12-24V) for Eurosealand

Features:

• 4 Sensor system
• 12-24Vdc
• 2.5m detection range - outser sensors 2.5m/0.6m (selectable via dip switch)
• Graduated visual and audible distance warning display
• Underslung and flush-mount fixings included
• 50cm compensation range for sensors fitted inboard of vehicle rear (selectable via dip switch)
• Obstacles detected in under 200 milliseconds
• Environmental Learning Mode prevents false alarms from tow-hooks and other ancillary equipment that intrudes in the first 100cm of the detection zone
• Self-diagnostic function
• 1 x Trigger output

Power:

• Power consumption: 2.4 Watts
• Current: 200mA

Durability & Standards:

• Mechanical vibration: 5G
• Mechanical shock: 10G
• Operating temperature: -30 to +80ºC
• Waterproof sensors to IP68
• Waterproof control box to IP69K
• CE marked
• E-Marked: UNECE R10 compliant
• FCC approved

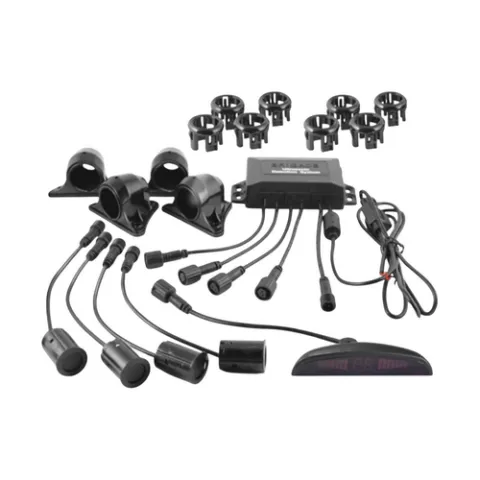

Package includes:

• 4 x sensors
• Visual and audible display
• 4 x 0° flush mount fixings
• 4 x 11° flush mount fixings
• 4 x underslung fixings
• Waterproof control box
• 15m display cable
• 4 x 2.5m sensor cables

For more information, please see Drawing
