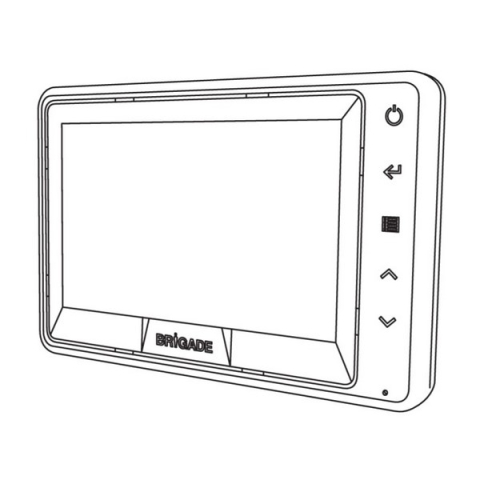

Brigade Electronics 4289A 5" Digital CCTV Monitor PAL / NTSC (Resolution 800 x 480)

Brigade Monitors

In-cab monitors are a vital part of the safety process, giving the driver essential information about the vehicle's surroundings. Brigade's compact 5" screen LCD monitors are suitable for smaller commercial vehicles or where cab space is limited. With single-to-multiple camera inputs and auto-triggers, Brigade monitors will work on any application in any industry, regardless of the amount of camera views connected.

The Benefits of using Monitor Systems:

• Eliminates Blind Spots -  Calibrated cameras capture all of the surrounding areas including the blind spots of the vehicle or machine
• Real-time Views - Live pictures of the vehicle or machine's surrounding area fed to the monitor without latency (time lag)
• Ultra-wide Cameras - One camera covers one full side of the vehicle with a viewing angle of over 180°
• Recordable - Record a high definition image to an external MDR of all the individual camera feeds

Features:

• High Quality Digital LCD with LED backlight.
• Low Reflection TFT LCD (Anti Glare Coating).
• Keypad Disable/Lock Via OSD Menu.
• Automatic Detection of PAL or NTSC Signal.
• 10 x On Screen Display (OSD) languages: (English, French, German, Spanish, Polish, Italian, Dutch, Portuguese, Russian, Turkish)
• Configurable Trigger off Delay (0-20 sec.)

Technical Specifications:

• Operating Voltage: 12 / 24 Vdc
• Current Consumption: ≤ 0.7A at 12Vdc
• Power Consumption: ≤ 8.4W at 12Vdc
• TV System: PAL / NTSC
• Display Size: 5.0" (diagonal)
• Resolution: 800 x (RGB) x 480
• Contrast Ratio: 500:1
• Brightness: 350 cd/m²
• Display Viewing Angle: 50(T), 70(B), 70(L), 70(R)
• One Trigger Input.
• Mirror/Normal via OSD Menu.
• One Video Input via 4 pin VBV connector.
• Shutter camera support: None
• Tilt camera support: None
• Monitor Dimensions: 149.5 mm (W) x 22 mm (D) x 99 mm (H)
• Monitor Weight: Approx. 250 Grams
• Video Input Impedance: 1.0 Vp-p / 75Ω
• Power / Trigger Cable Thickness: 18 AWG
• Cable Length:
• - Monitor Pigtail: 600 ± 50mm
• - Cable Adapter: 1800 ± 80mm
• Casing Material: ABS Plastic
• Finish / Color: Matt Black

Environmental Specifications:

• Shock Rating: 100 G
• Vibration Rating: 4 G (3 axis each 32hr random)
• Connector IP Rating: IP40
• Monitor IP Rating: IP30
• Operating Temperature: -30° to +70°C
• Storage Temperature: -40° to +85°C

Approved Standards:

• CE - (EN 61000-6-2:2005 + AC:2005 ) / (EN 61000-6-3:2007 + A1:2011 + AC:2012)
• FCC - (47 CFR Part 15 Subpart B)
• HALT
• RoHS
• WEEE

Package Includes:

• 1x VBV-650M-M - Monitor
• 1x VBV-650M-CA - Cable Adapter
• 1x VBV-650M-IG - Installation Guide
• 1x BMM-015 - Bracket
