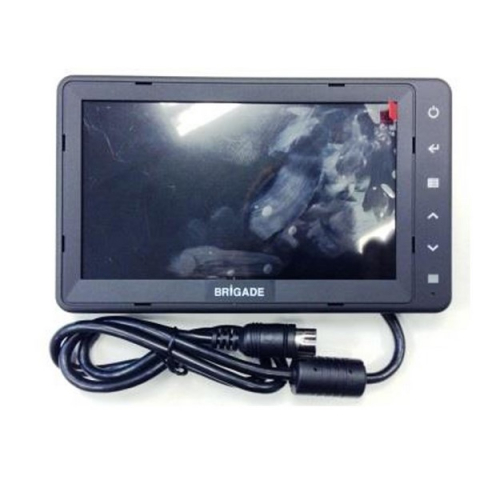

Brigade Electronics 4288A Select Monitor 7" LCD 3 Inputs Audio

Brigade Monitors

In-cab monitors are a vital part of the safety process, giving the driver essential information about the vehicle's surroundings. Brigade's compact 5" screen LCD monitors are suitable for smaller commercial vehicles or where cab space is limited. With single-to-multiple camera inputs and auto-triggers, Brigade monitors will work on any application in any industry, regardless of the amount of camera views connected.

The Benefits of using Monitor Systems:

• Eliminates Blind Spots -  Calibrated cameras capture all of the surrounding areas including the blind spots of the vehicle or machine
• Real-time Views - Live pictures of the vehicle or machine's surrounding area fed to the monitor without latency (time lag)
• Ultra-wide Cameras - One camera covers one full side of the vehicle with a viewing angle of over 180°
• Recordable - Record a high definition image to an external MDR of all the individual camera feeds

Features:

• High Quality Digital LCD with LED backlight.
• Low Reflection TFT LCD (Anti Glare Coating)
• Integrated light sensor for picture dimming and Touch Keypad illumination.
• Keypad Disable/Lock Via OSD Menu.
• Integrated speaker.
• Automatic Detection of PAL or NTSC Signal.
• Shutter camera support on VBV-770M-S
• 8 x On Screen Display (OSD) languages: (English, French, German, Spanish, Italian, Dutch, Portuguese, Russian)
• Configurable Trigger off Delay (0-20 sec.)
• Configurable Auto Scan Delay (0-20 sec.)
• 2 Variations of Electronic On Screen Markers.
• Compatible with Remote Control VBV-7X0DM-RC.

Technical Specifications:

• Operating Voltage: 12 / 24 Vdc
• Current Consumption: ≤ 1.5A at 12Vdc
• Power Consumption: ≤ 18W at 12Vdc
• TV System: PAL / NTSC
• Display Size: 7.0" (diagonal)
• Resolution: 800 x (RGB) x 480
• Contrast Ratio: 500:1
• Brightness: 400 cd/m²
• Display Viewing Angle: 50(T), 70(B), 70(L), 70(R)
• Number of Triggers Inputs: 3
• Mirror/Normal via OSD Menu: All Channels
• Number of Video Inputs: - 4 pin VBV connector, CA 3
• Speaker Rating: 8Ω at 1 Watt
• Monitor Dimensions: (Without Sunshield) 195.5 mm (W) x 25.5 mm (D) x 117.5 mm (H)
• Monitor Weight: Approx. 500 Grams
• Video Input Impedance: 1.0 Vp-p / 75Ω
• Power / Trigger Cable Thickness: 18 AWG
• Cable Length:
• - Monitor Pigtail: 900 ± 30mm
• - Cable Adapter: 1800 ± 80mm
• Casing Material: ABS Plastic
• Finish / Color: Soft Touch Black

Environmental Specifications:

• Shock Rating: 100 G
• Vibration Rating: 4 G (All 3 axis each 32hr random)
• Connector IP Rating: IP40
• Monitor IP Rating: IP30
• Operating Temperature: -30° to +70 °C
• Storage Temperature: -30° to +85°C

Approved Standards:

• CE - (EN 61000-6-2:2007 / EN 61000-6-3:2007)
• ‘E' Mark - (ECE Regulation 10 Rev 04)
• FCC - (47 CFR Part 15 Subpart B)
• HALT
• RoHS
• WEEE

Package Includes:

• 1x VBV-770M-M - Monitor
• 1x VBV-770M-XCA - Cable Adapter
• 1x VBV-770M-SS - Sunshield
• 1x VBV-770M-X-IG - Installation Guide
• 1x BMM-015 - Bracket
