Brigade Electronics 3747 Frontscan Sensor System (12-24VDC)

Why Ultrasonic Proximity Sensors?

Reducing blind spots and improving driver visibility are important issues for operators of road-going vehicles. Over the past few years, safety devices such as additional mirrors or camera systems that give wider viewing angles have become commonplace, and even mandatory under blind spot legislation. However, despite an increase in visibility, collisions with other vehicles, fixed objects, cyclists, workers and even pedestrians, remain high.

Obstacle detection using ultrasonic sensors can minimise both vehicle damage and collisions with pedestrians or cyclists. Perfect for road-going commercial vehicles operating in confined spaces or manoeuvring at low speed, the detection system alerts the driver of obstacles close to the vehicle, whether moving or stationary. An audible and/or visual in-cab warning informs of distance, whilst an optional external speaking alarm can be added to alert cyclists and pedestrians that the vehicle is turning.

Frontscan^®

4 sensor system fitted to front of the vehicle. Particularly relevant for front blind spot on high cabs where low objects or pedestrians can be hidden. System can be activated below designated speed.

FS-4000W - Frontscan^® Front sensor system

Features:

• 4 Sensor system
• 1.0m or 2.0m detection range (selectable via dip switch)
• 2 sensitivity levels (selectable via dip switch)
• Buzzer with audible distance warning, LED & volume control.
• Environment Learning Mode (ELM) - Prevents false alarms from vehicle ancillary equipment intruding into the first 1m of the detection zone.
• Detection within 200ms
• Output trigger to operate ancillary items on detection.
• Configurable sensors housing (through hole or under slung)
• Common components through UDS range.

Environmental Specifications:

• Vibration Rating: 5G
• Shock rating: 10G
• Connector IP Rating: IP68
• ECU IP Rating: IP69K
• Operating Temperature: -30° to +80 °C
• Storage Temperature: -40° to +85°C

Technical Specifications:

• Operating Voltage: 10-32Vdc
• Current Consumption: 200mA at 12Vdc
• Power Consumption: 2.4 Watts at 12Vdc
• Buzzer Frequency: 2400Hz ± 200Hz
• Volume: 72-90dB ±5 at 30cm
• Sensor Frequency: 40KHz ± 2KHz
• No. of detection zones: 3
• Zone distances:
  • Zone 1 = 0.00-0.60m
  • Zone 2 = 0.60-1.00m
  • Zone 3 = 1.00-2.00m
• Zone tolerance: ±10cm
• Min sensor height: 400mm
• Max sensor cable length: 10m
• Detection Angle: 90°(H), 60°(V)
• Cable Specification: 24 AWG
• Casing Material: ABS+70%PC
• Color: Black
• Output trigger: Switched Ground 250mA max

Approved Standards:

• CE
• FCC
• ‘E' Mark (UNECE - Regulation 10 Revision 04)
• RoHS
• HALT

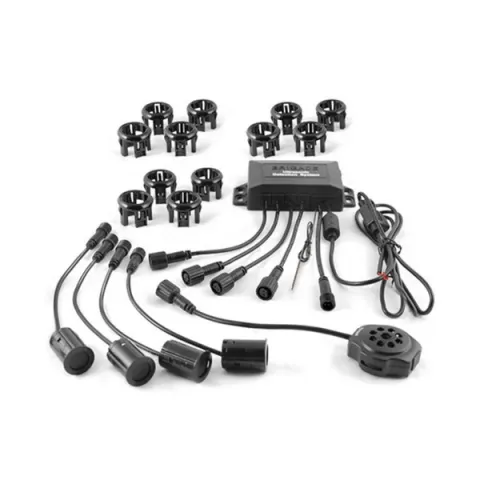

Package Contents:

• 1x ECU
• 1x Buzzer
• 4x Sensors
• 4x 2.5m sensor cables
• 1x 2.5m buzzer cable
• 4x 11° sensor sleeves
• 4x 18° sensor sleeves
• 4x 26° sensor sleeves
• 1x Installation Guide
