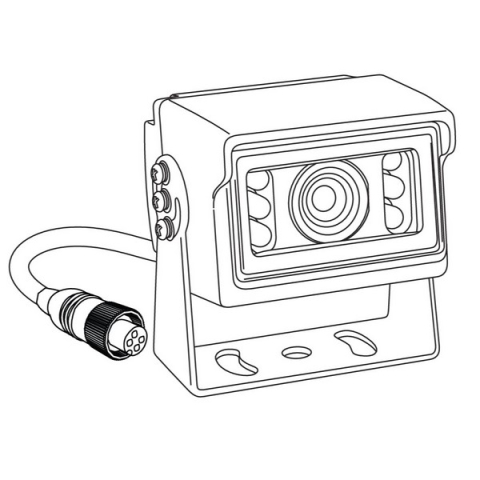

Brigade Electronics 3683B Essential Camera IP67 White Boxed (PAL)

Reduce Blind Spots and Prevent Collisions

The size of commercial vehicles and machines mean vehicle blind spots are a major factor in collisions across all industries. Operator positions, bodywork, bulkheads and absent rear windows create further restrictions and can greatly limit driver visibility, making collisions even more likely. The significant financial cost of vehicle and property damage is magnified by associated costs such as downtime but, even greater, are the corporate and emotional costs when there is personal injury.

Brigade's camera monitor systems enable drivers and operators to maneuver and drive safely. Vehicle-mounted CCTV cameras can help the driver to see blind spots and provide a reversing aid by delivering a live feed on the monitor of everything in the camera view, including people or obstacles.

Features:

• High Quality Pixel Plus CMOS device
• Integrated Day/Night Sensor to enable IR LEDs.
• 6 x High Power Infrared LEDs
• Back Light Compensation
• Automatic White Balance
• Fixed IRIS
• VBV Type Female Connector

Environmental Specifications:

• Shock Rating: 51g
• Vibration Rating: 4g (3 axis each 32hr random)
• Camera IP Rating: IP69K
• Connector IP Rating: IP67
• Operating Temperature: -30° to +70°C
• Storage Temperature: -40° to +85°C

Technical Specifications:

• Operating Voltage: 12 Vdc ± 2 Vdc
• Current Consumption: ≤115mA at 12 Vdc
• Power Consumption: ≤1.4 Watts at 12 Vdc
• Imaging Devices: CMOS - 1/3" Pixel Plus
• TV System: CVBS (PAL)
• Picture Elements: 976(H) x 592(V)
• Horizontal Visual Resolution: 600 TV Lines
• Lens Focal Length: 2.8mm ± 5%
• Signal to Noise Ratio: 43.3 dB
• Required Illumination: 0 Lux (IR LEDs ON)
• Illumination Area: Approx. 8m (L) x 3m (W)
• Viewing Angle: 95°(H), 70°(V), 120°(D)
• Assembled Weight: Approx. 250 grams
• Video Output: 1.0 Vp-p / 75Ω
• Length of Cable: 1000 ± 30mm
• Overall Dimensions: 67mm (W) x 53mm (D) x 66mm (H)
• Casing Material: Aluminium Alloy
• Camera View: Mirror Fixed
• Finish: Black Powder Coating

Approved Standards:

• CE - (EN 61000-6-2:2005 + AC:2005 EN 61000-6-3:2007 + A1:2011 + AC:2012)
• ‘E' Mark - (UNECE Regulation 10 Rev 05)
• FCC - (47 CFR Part 15 Subpart B)
• IC - (ICES-003 - Issue 6)
• Ingress Protection - (ISO 20653:2006)
• RoHS
• WEEE

Package Includes:

• 1 x VBV-620C-C - Camera
• 1 x VBV-620C-BKT - Bracket
• 1 x VBV-620C-FIX - Fixing Pack
• 1 x VBV-620C-IG - Installation Guide
