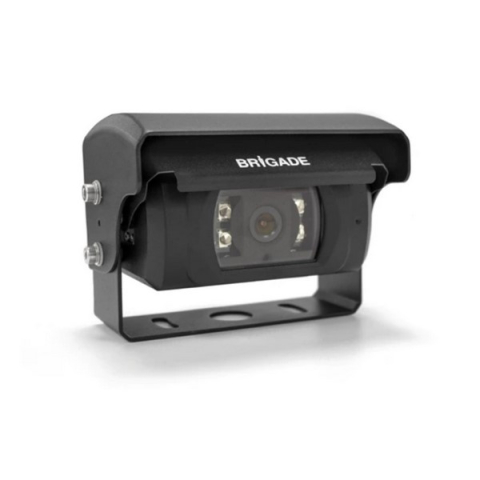

Brigade Electronics 2808C Select Camera Heated Shutter & Audio (PAL)

Reduce Blind Spots and Prevent Collisions

The size of commercial vehicles and machines mean vehicle blind spots are a major factor in collisions across all industries.

Operator positions, bodywork, bulkheads and absent rear windows create further restrictions and can greatly limit driver visibility, making collisions even more likely. The significant financial cost of vehicle and property damage is magnified by associated costs such as downtime but even greater, are the corporate and emotional costs when there is personal injury.

Brigade's camera monitor systems enable drivers and operators to manoeuvre and drive safely. Vehicle-mounted CCTV cameras can help the driver to see blind spots and provide a reversing aid by delivering a live feed on the monitor of everything in the camera view, including people or obstacles.

Features:

• Shutter, Electro-mechanical Driven
• Integrated Heater
• Night Vision via 4 x High Power Infrared LEDs (enabled by integrated Day / Night sensor)
• Integrated Microphone
• High Quality PixelPlus CMOS Image Sensor
• Back Light Compensation
• Automatic White Balance
• Fixed IRIS
• VBV Type Female Connector

Power:

• Max Power consumption: 6 Watts
• Max Current: 0.5 Amps

Environmental Specifications:

• Shock Rating: 51 G (All 3 Axis - 6 directions)
• Vibration Rating: 8.5 G (All 3 Axis - 32hrs each)
• Camera IP Rating: IP68, IP69K
• Connector IP Rating: IP67
• Operating Temperature: -30° to +70°C
• Storage Temperature: -40° to +85°C

Technical Specifications:

• Operating Voltage: 12 VDC ± 2 VDC
• Current Consumption: ≤473mA (AT 12 VDC)
• Power Consumption: ≤5.68 Watts
• TV System: PAL
• Imaging Device: CMOS - 1/3" PixelPlus
• Picture Elements: 968(H) x 488(V)
• Lens Focal Length: 2.8mm
• Visual Resolution: 450 TV Lines
• Required Illumination: 0 Lux (IR LED ON)
• Illumination Range: 8m x 5m
• Viewing Angle (PAL): 92°(H), 69°(V), 117°(D) ±5°
• Assembled Weight: 718 Grams
• Video Output: Approx. 1.0 Vp-p / 75Ω
• Length of Cable: 950 ± 50mm
• Overall Dimensions: 122mm(W) x 85mm(H) x 76mm(D)
• Casting Material: Aluminium Alloy
• Camera View: Mirror / Normal
• Finish: Black Powder Coating

Approved Standards:

• E-Mark - (UNECE Reg. 10 Rev. 05)
• CE - (EN 61000-6-2:2005 + AC:2005) / (EN 61000-6-3:2007 + A1:2011 + AC:2012)
• FCC - (47 CFR Part 15 Subpart B)
• Industry Canada - (ICES-003:2016, Issue 6)
• Elements of ISO 16750:2012
• Ingress Protection - (ISO 20653:2013)
• WEEE
• RoHS

Package Includes:

• 1 x VBV-710C Camera
• 1 x VBV-710C-BKT - Bracket
• 1 x VBV-710C-SS - Sunshield
• 1 x VBV-710C-FIX - Fixing Pack
• 1 x VBV-710C-IG - Installation Guide
