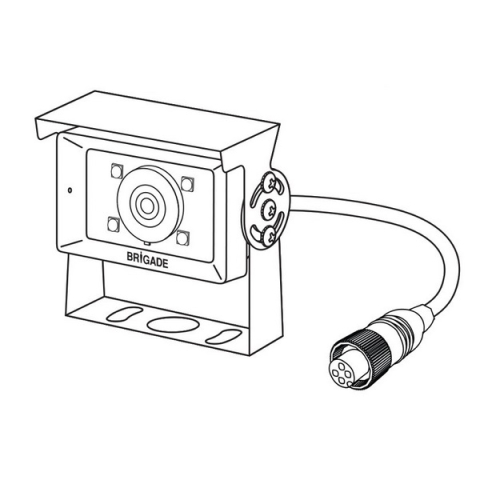

Brigade Electronics 1379E Select Camera Audio (PAL) CMOS

Reduce Blind Spots and Prevent Collisions

The size of commercial vehicles and machines mean vehicle blind spots are a major factor in collisions across all industries.

Operator positions, bodywork, bulkheads and absent rear windows create further restrictions and can greatly limit driver visibility, making collisions even more likely. The significant financial cost of vehicle and property damage is magnified by associated costs such as downtime but even greater, are the corporate and emotional costs when there is personal injury.

Brigade's camera monitor systems enable drivers and operators to manoeuvre and drive safely. Vehicle-mounted CCTV cameras can help the driver to see blind spots and provide a reversing aid by delivering a live feed on the monitor of everything in the camera view, including people or obstacles.

Features:

• Night Vision via 4 x High Power Infrared LEDs enabled by integrated Day / Night sensor
• Integrated Microphone
• High Quality Pixelplus CMOS Sensor
• Back Light Compensation
• Automatic White Balance
• Fixed IRIS
• VBV Type Female Connector (4-pin)

Environmental Specifications:

• Shock Rating: 51G (All 3 Axis - 6 directions)
• Vibration Rating: 8.5G (All 3 Axis - 32hrs each)
• Camera IP Rating: IP68, IP69K
• Connector IP Rating: IP67
• Operating Temperature: -30° to +70°C
• Storage Temperature: -40° to +85°C

Technical Specifications:

• Operating Voltage: 12Vdc ± 2Vdc
• Current Consumption: ≤210mA at 12Vdc
• Power Consumption: ≤2.52 Watts at 12Vdc
• Imaging Device: CMOS - 1/3" Pixelplus
• TV System: PAL
• Visual Resolution: 475 TV Lines
• Picture elements: 968(H) x 488(V)
• Lens Focal Length: 2.8mm
• Required Illumination: 0 Lux (IR LED ON)
• Illumination Area: Approx. 9m(L) x 5m(W)
• Viewing Angle: 92°(H), 68°(V), 119°(D)
• Assembled Weight: 304 Grams
• Video Output: Approx. 1.1 Vp-p / 75Ω
• Length of Cable: 1000 ± 30mm
• Overall Dimensions: 81mm(W) x 78mm(H) x 70mm(D)
• Housing Material: Aluminium Alloy
• Camera View: Fixed - Mirror
• Finish: Black Powder Coating

Approved Standards:

• CE - (EN 61000-6-3:2007+A1:2011+AC:2012 / EN 6001-6-2:2005+AC:2005)
• FCC (47 CFR Part 15 Subpart B)
• Industry Canada (ICES-003)
• E-Mark - (ECE Regulation 10 Rev. 05)
• Ingress Protection (ISO 20653:2013)
• Elements of ISO 16750:2012
• RoHS2
• REACH

Package Includes:

• 1 x VBV-700C-C - Camera
• 1 x VBV-700C-BKT - Bracket
• 1 x VBV-700C-SS - Sunshield
• 1 x VBV-700C-FIX - Fixing Pack
• 1 x VBV-700C-IG - Installation Guide
